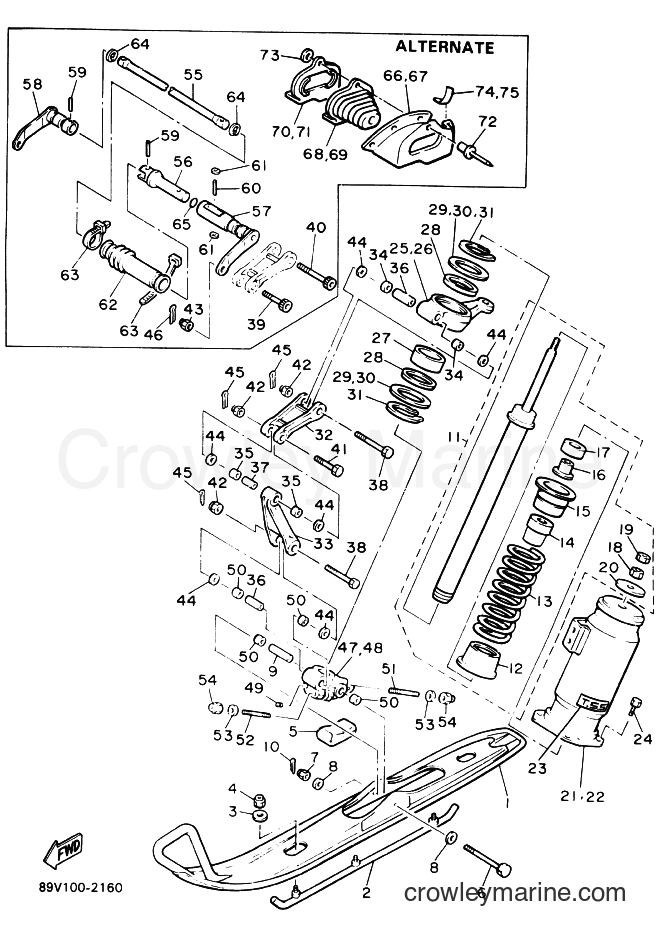

1993 Snowmobile VT480GT - VT480GT (8AP1) [020] SKI diagram

1
Yamaha Motors
Ski88T-23710-01-00
Required: 2
SKI COMP. 1
$223.54
You save $39.45

2
Yamaha Motors
SKI RUNNER 18AP-23731-00-XX
Required: 2
RUNNER 1
Supersedes: 8AP-23731-00-00
$36.51
You save $6.44

3
Yamaha Motors
Plate Washer92990-08600-00
Required: 6
WASHER, plate
In stock
5+ in stock
$2.29
You save $0.41
4
Yamaha Motors
NUT95617-08100-00
Required: 6
NUT, u
Supersedes: 95611-08100-00
$8.92
You save $1.57
$22.09
You save $3.90

6
Yamaha Motors
BOLT,WITH HOLE90102-10050-00
Required: 2
BOLT, with hole
$17.84
You save $3.15

7
Yamaha Motors
NYLON NUT95707-10300-00
Required: 2
NUT, nylon
Supersedes: 95706-10300-00
$8.07
You save $1.42

8
Yamaha Motors
Plate Washer92907-10600-00
Required: 4
WASHER
Supersedes: 92906-10600-00
$8.07
You save $1.42
$16.57
You save $2.92

10
Yamaha Motors
Cotter Pin91490-20025-00
Required: 2
PIN, cotter
Supersedes: 91490-20020-00
$1.69
You save $0.30

11
Yamaha Motors
ABSORBER ASSEMBLY8AP-2376A-00-00
Required: 2
ABSORBER ASSY 1
$256.69
You save $45.30

12
Yamaha Motors
Spring Seat82M-23777-00-00
Required: 1
.SEAT, spring 2
$16.99
You save $3.00

13
Yamaha Motors
Compression Spring90501-753G9-00
Required: 1
.SPRING, compression
$50.14
You save $8.85
$20.39
You save $3.60

15
Yamaha Motors
Backup Plate8AB-23788-00-00
Required: 1
.PLATE, back up
Supersedes: 8L0-23788-00-00
$30.59
You save $5.40
$12.32
You save $2.17
$13.17
You save $2.32
$1.87
You save $0.33

19
Yamaha Motors
Nut95333-08600-00
Required: 1
.NUT
Supersedes: 95303-08600-00
In stock
Only 1 remaining
$3.23
You save $0.57

20
Yamaha Motors
Plate Washer90201-080L1-00
Required: 1
.WASHER, plate
$4.12
You save $0.73

21
Yamaha Motors
ABSORBER HOLDER87H-2376J-00-00
Required: 1
HOLDER, absorber
Supersedes: 89V-2376J-00-00
$168.29
You save $29.70

22
Yamaha Motors
Absorber Holder87H-2377J-00-00
Required: 1
HOLDER, absorber 2
Supersedes: 89V-2377J-00-00
$175.09
You save $30.90
$7.64
You save $1.35
$0.81
You save $0.14

25
Yamaha Motors
OUTSIDE ARM 187F-23851-01-00
Required: 1
ARM, outside 1
$97.74
You save $17.25

26
Yamaha Motors
OUTSIDE ARM87F-23852-01-00
Required: 1
ARM, outside 2
$97.74
You save $17.25

27
Yamaha Motors
BIMETAL FROM BUSH90384-53175-00
Required: 2
BUSH, bimetal formed
$36.54
You save $6.45
$13.17
You save $2.32

29
Yamaha Motors
Plate Washer90201-536A1-00
Required: 4
WASHER, plate (T-1.0)
$3.70
You save $0.65

30
Yamaha Motors
Plate Washer90201-535H6-00
Required: 4
WASHER, plate (T-2.0)
$3.78
You save $0.67
$12.32
You save $2.17
$33.99
You save $6.00
$37.39
You save $6.60

34
Yamaha Motors
BIMETAL FROM BUSH90384-14091-00
Required: 4
BUSH, bimetal formed
$10.62
You save $1.87

35
Yamaha Motors
BIMETAL FROM BUSH90384-14096-00
Required: 4
BUSH, bimetal formed
$10.62
You save $1.87
$27.19
You save $4.80
$5.09
You save $0.90

38
Yamaha Motors
BOLT,WITH HOLE90102-10039-00
Required: 4
BOLT, with hole
$10.62
You save $1.87

39
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10172-00
Required: 2
BOLT, hexagon socket head
$21.24
You save $3.75

40
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10174-00
Required: 2
BOLT, hexagon socket head
$7.64
You save $1.35

41
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10173-00
Required: 2
BOLT, hexagon socket head
$33.99
You save $6.00

42
Yamaha Motors
NYLON NUT95707-10300-00
Required: 6
NUT, nylon
Supersedes: 95706-10300-00
$8.07
You save $1.42

43
Yamaha Motors
NYLON NUT95707-10300-00
Required: 4
NUT, nylon
Supersedes: 95706-10300-00
$8.07
You save $1.42
$8.07
You save $1.42

45
Yamaha Motors
Cotter Pin91490-20025-00
Required: 6
PIN, cotter
Supersedes: 91490-20020-00
$1.69
You save $0.30

46
Yamaha Motors
Cotter Pin91490-20025-00
Required: 4
PIN, cotter
Supersedes: 91490-20020-00
$1.69
You save $0.30
$220.99
You save $39.00
$288.99
You save $51.00
$8.92
You save $1.57

50
Yamaha Motors
BIMETAL FROM BUSH90384-14091-00
Required: 8
BUSH, bimetal formed
$10.62
You save $1.87

51
Yamaha Motors
STUD BOLT 395617-08655-00
Required: 2
BOLT, stud
Supersedes: 95611-08655-00
$5.52
You save $0.97

52
Yamaha Motors
STUD BOLT 395617-08640-00
Required: 2
BOLT, stud
Supersedes: 95611-08640-00
$5.52
You save $0.97

53
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, plate
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.29
You save $0.41
$1.02
You save $0.18

55
Yamaha Motors
BAR,STABLIZR FRT87F-2386E-00-00
Required: 1
BAR, stabilizer front
$180.19
You save $31.80

56
Yamaha Motors
FRONT STABILIZER LINK82M-2386F-00-00
Required: 1
LINK, stabilizer front
$54.39
You save $9.60

57
Yamaha Motors
STABILZER JOINT86M-2385L-00-00
Required: 1
JOINT, stabilizer
$122.39
You save $21.60

58
Yamaha Motors
STABILZER JOINT86M-2385M-00-00
Required: 1
JOINT, stabilizer 2
$147.04
You save $25.95
$4.04
You save $0.71
$5.09
You save $0.90
$5.94
You save $1.05

62
Yamaha Motors
Stabilizer Front Cover82M-2386H-00-00
Required: 1
COVER, stabilizer front
$29.74
You save $5.25

63
Yamaha Motors
Band1UA-82591-00-00
Required: 2
BAND
Supersedes: 12R-82591-00-00
$4.67
You save $0.82
$7.22
You save $1.27
$5.09
You save $0.90

66
Yamaha Motors
PLTE,STRG BRKT 187F-2195E-00-00
Required: 1
PLATE, strg bracket 1
$19.54
You save $3.45

67
Yamaha Motors
PLTE,STRG BRKT 187F-2195F-00-00
Required: 1
PLATE, strg bracket 2
$20.39
You save $3.60

68
Yamaha Motors
Cover82M-2198F-00-00
Required: 1
COVER 1 (L.H)
$38.24
You save $6.75

69
Yamaha Motors
Cover 282M-2198G-00-00
Required: 1
COVER 2 (R.H)
$38.24
You save $6.75

70
Yamaha Motors
PLATE,STRG BRKT 182M-2195E-00-00
Required: 1
PLATE, strg bracket 1 (L.H)
$25.49
You save $4.50

71
Yamaha Motors
PLATE,STRG BRKT 282M-2195F-00-00
Required: 1
PLATE, strg bracket 2 (R.H)
$25.49
You save $4.50
$8.07
You save $1.42

73
Yamaha Motors
Plain Washer90201-04027-00
Required: 12
WASHER, plate
Supersedes: 90201-047A7-00
$2.08
You save $0.37
$5.94
You save $1.05
$6.37
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
