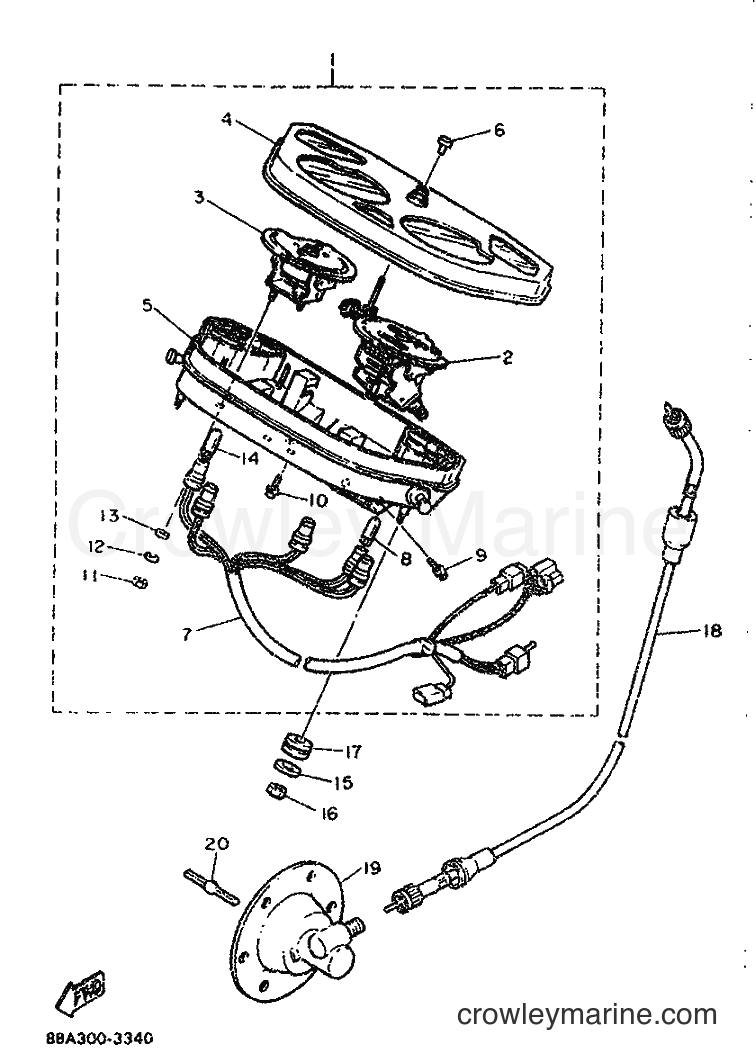

1993 Snowmobile EX570ST - EX570ST (8BA1) [010] METER diagram
![Yamaha Motors EX570ST (8BA1) [010] - METER](https://cdn.crowleymarine.com/yamaha/2gHUupiw.png)
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. SPEEDOMETER ASSY
Price unavailable
3
Yamaha Motors
Tachometer Assembly88R-83540-20-00
Required: 1
. TACHOMETER ASSY
$202.29
You save $35.70
4
Required: 1
. COVER, METER
Price unavailable
5
Required: 1
. CASE, UNDER
Price unavailable
6
Yamaha Motors
Trip Meter Knob29L-83578-00-00
Required: 1
. KNOB, TRIP METER
$27.19
You save $4.80
7
Required: 1
. SOCKET CORD ASSY
Price unavailable
8
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 4
. BULB (12V-5W)
$5.09
You save $0.90
9
Yamaha Motors
Tapping Screw90167-04021-00
Required: 2
. SCREW, TAPPING
$1.96
You save $0.35
10
Yamaha Motors
Tapping Screw90164-04009-00
Required: 4
. SCREW, TAPPING
$0.42
You save $0.08
11
Yamaha Motors
NUT (6TA)95307-04600-00
Required: 2
. NUT
Supersedes: 95301-04600-00
$8.07
You save $1.42
12
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
13
Yamaha Motors
Plain Washer92990-04200-00
Required: 2
. WASHER, PLAIN
In stock
Only 1 remaining
$1.70
You save $0.30
$3.06
You save $0.54
15
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
$0.55
You save $0.10
In stock
5+ in stock
$4.08
You save $0.72
$14.02
You save $2.47
18
Yamaha Motors
Speedometer Cable82M-83550-00-00
Required: 1
SPEEDOMETER CABLE ASSY
$34.84
You save $6.15
19
Yamaha Motors
Meter Gear Housing8L9-47700-00-00
Required: 1
METER GEAR HOUSING COMP.
$63.74
You save $11.25
In stock
Only 2 remaining
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
