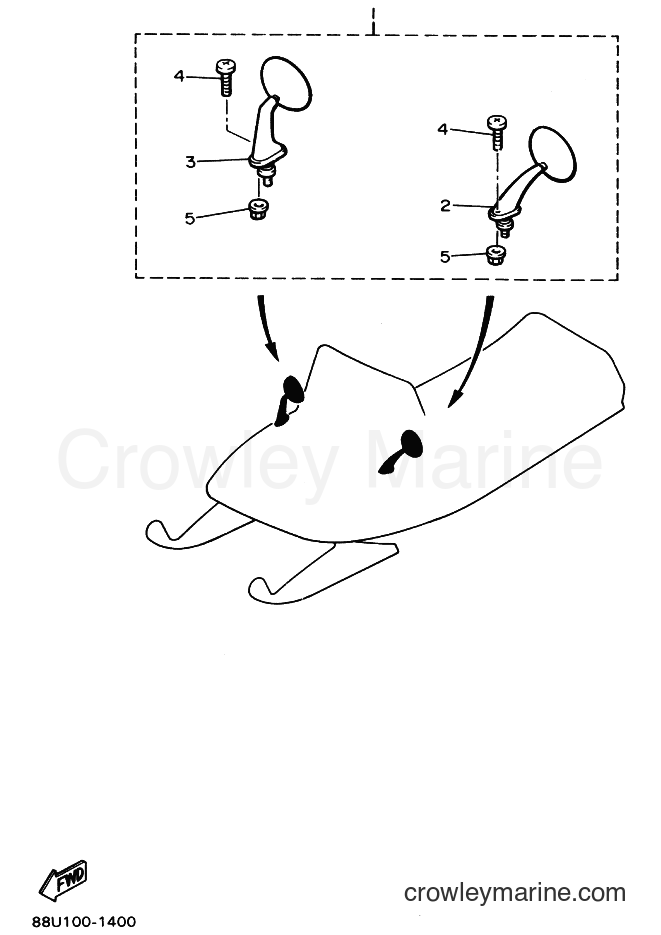

Yamaha Motors VK540E (86V4) [010] - ELECTRICAL 1
Change View:
Mirror Kit
1
Yamaha Motors
Mirror Kit8E1-W2628-00-00
Required: 1
REAR VIEW MIRROR SET
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
Mirror Assembly
2
Yamaha Motors
Mirror Assembly8E1-26290-00-00
Required: 1
. REAR VIEW MIRROR ASSY (LEFT)
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Mirror Assembly
3
Yamaha Motors
Mirror Assembly8E1-26280-00-00
Required: 1
. REAR VIEW MIRROR ASSY (RIGHT)
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98517-04016-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98511-04016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Nut
5
Yamaha Motors
Flange Nut95701-04500-00
Required: 4
. NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
