1992 Snowmobile PZ480 - PZ480 (89F1) [020] ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

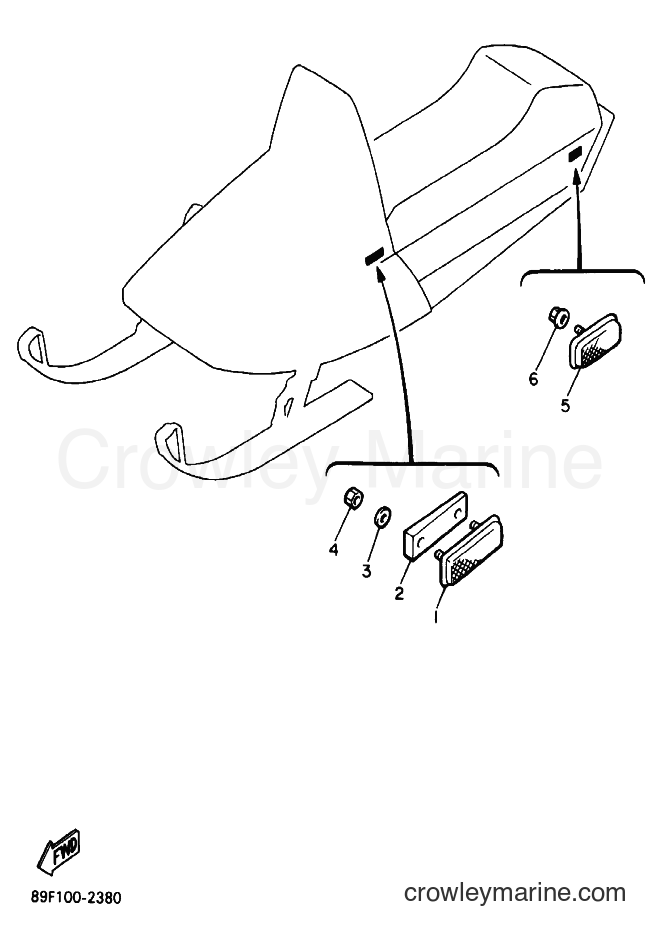

Yamaha Motors PZ480 (89F1) [020] - ELECTRICAL 3
Change View:
FRONT REFLECTOR
1
Yamaha Motors
FRONT REFLECTOR81E-85110-00-00
Required: 2
REFLECTOR ASSY
Supersedes: 80E-85110-00-00
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Reflector Base
2
Yamaha Motors
Reflector Base80E-85115-00-00
Required: 2
BASE, reflector
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
4
Required: 4
NUT, nylon
Price unavailable
3Y6-85130-01-00
5
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-01-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
6
Required: 2
NUT, flange
Price unavailable
