1992 Snowmobile EX570 - EX570 (89J1) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

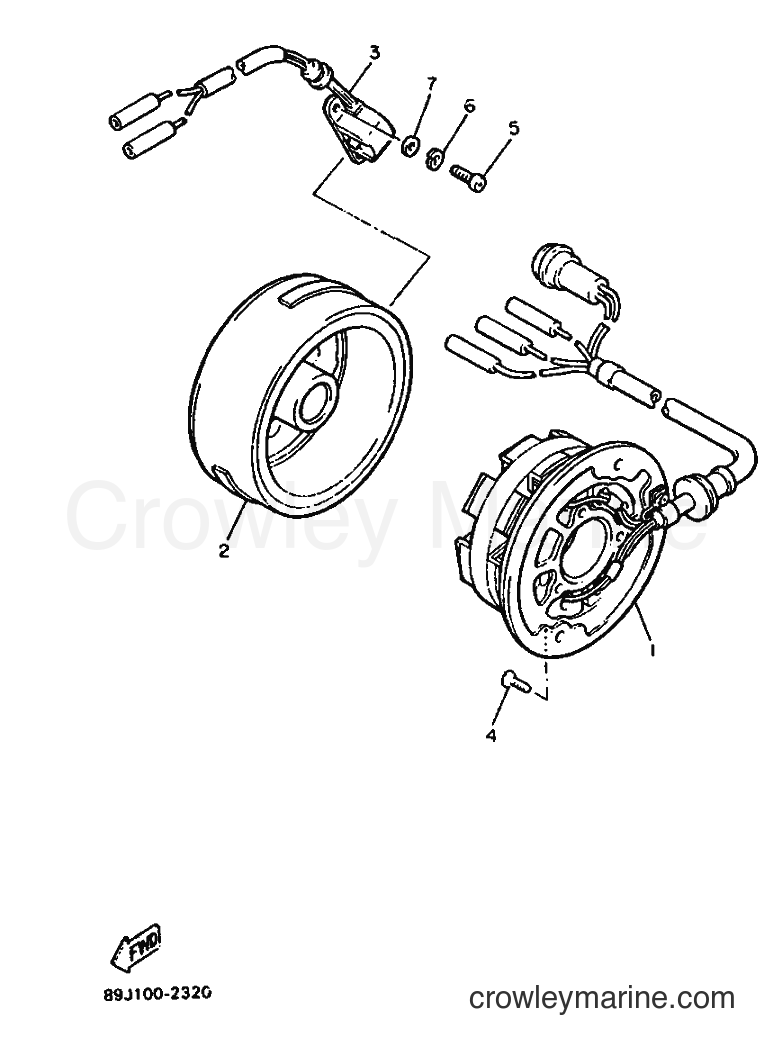

Yamaha Motors EX570 (89J1) [010] - GENERATOR

Change View:

Yamaha Motors

STATOR ASSEMBLY88R-85510-00-00

Required: 1

STATOR ASSY

~~$683.99~~

$581.39

You save $102.60

More details

Yamaha Motors

ROTOR ASSEMBLY88R-85550-00-00

Required: 1

ROTOR ASSY

~~$344.99~~

$293.24

You save $51.75

More details

Yamaha Motors

Pulser Coil88R-85580-01-00

Required: 1

COIL, PULSER

Supersedes: 88R-85580-00-00

~~$157.99~~

$134.29

You save $23.70

More details

Yamaha Motors

Bind Screw98980-06016-00

Required: 2

SCREW, BIND

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Pan Head Screw98502-05014-00

Required: 2

SCREW, PAN HEAD

Supersedes: 98580-05014-00

In stock

5+ in stock

~~$2.40~~

$2.04

You save $0.36

More details

Yamaha Motors

Spring Washer92990-05100-00

Required: 2

WASHER, SPRING

Supersedes: 92901-05100-00

In stock

Only 5 remaining

~~$0.35~~

$0.30

You save $0.05

More details

Yamaha Motors

Plate Washer92990-05600-00

Required: 2

WASHER, PLATE

Supersedes: 92901-05600-00

In stock

Only 4 remaining

~~$0.80~~

$0.68

You save $0.12

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
