1990 Snowmobile PZ480P - PZ480P (87F1) [010] STEERING GATE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

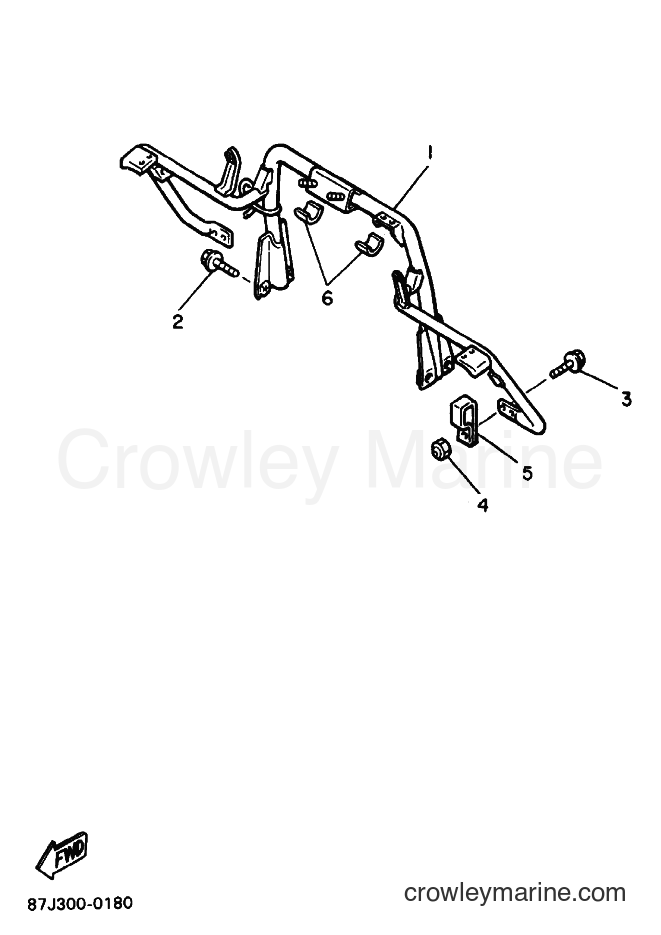

Yamaha Motors PZ480P (87F1) [010] - STEERING GATE
Change View:
Steering Gate Component
1
Yamaha Motors
Steering Gate Component87F-23870-00-00
Required: 1
STEERING GATE COMP.
Cross Ship
Leaves in 2-5 days
$437.99
$372.29
You save $65.70
More details
Flange Bolt
3
Yamaha Motors
Flange Bolt95817-06030-00
Required: 4
BOLT, flange
Supersedes: 95802-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Flange Nut
4
Yamaha Motors
Flange Nut95707-06300-00
Required: 4
NUT, nylon
Supersedes: 95701-06300-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Clamp
5
Yamaha Motors
Clamp90465-06013-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
Spacer
6
Yamaha Motors
Spacer8V0-23858-00-00
Required: 2
SPACER
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
