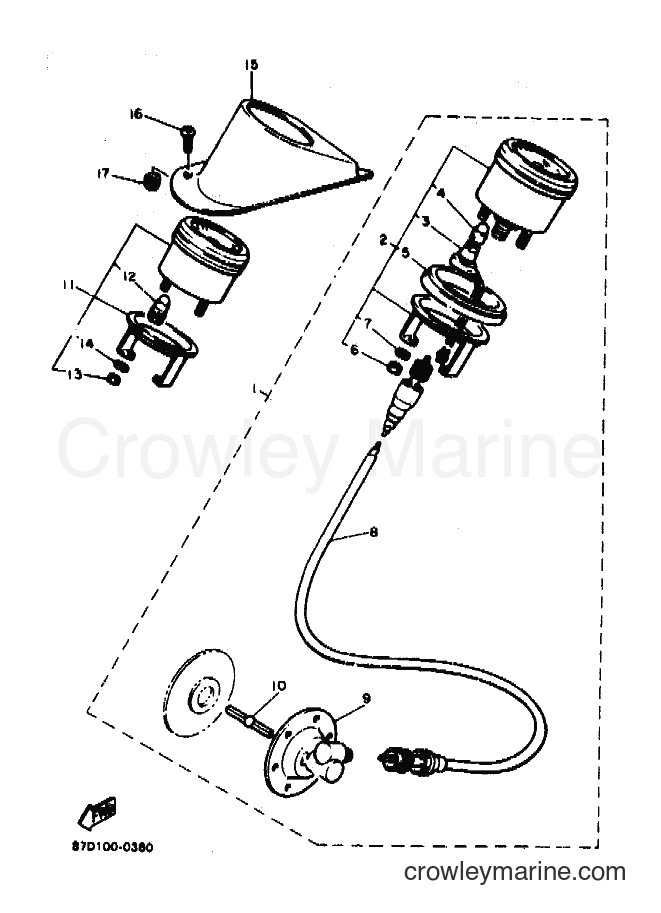

1990 Snowmobile CS340P - CS340P (87D1) [010] ALTERNATE (METER) diagram
![Yamaha Motors CS340P (87D1) [010] - ALTERNATE (METER)](https://cdn.crowleymarine.com/yamaha/SgOSKWcd.png)
1
Required: 1
SPEEDOMETER KIT
Price unavailable
2
Yamaha Motors
SPEEDOMETER ASSEMBLY80V-83510-20-00
Required: 1
.SPEEDOMETER ASSY
$106.24
You save $18.75
3
Yamaha Motors
Socket Cord Assembly5E2-83509-20-00
Required: 1
..SOCKET, meter
Supersedes: 8V7-83536-40-00
$27.19
You save $4.80
4
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
..BULB (12V-3.4W)
$5.09
You save $0.90
$8.92
You save $1.57
6
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
..NUT
Supersedes: 95303-06600-00
In stock
5+ in stock
$3.84
You save $0.96
7
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
..WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.76
You save $0.69
8
Yamaha Motors
Speedometer Cable85N-83550-01-00
Required: 1
.SPEEDOMETER CABLE ASSY
Supersedes: 85N-83550-00-00
$43.34
You save $7.65
9
Yamaha Motors
Meter Gear Housing8Y1-47700-00-00
Required: 1
.METER GEAR HOUSING COMP
$59.49
You save $10.50
In stock
Only 2 remaining
$5.52
You save $0.97
11
Yamaha Motors
TACHOMETER SET KIT85L-83540-00-00
Required: 1
TACHOMETER ASSY
$285.59
You save $50.40
12
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
.BULB (12V-3.4W)
$5.09
You save $0.90
13
Yamaha Motors
Nut95380-05600-00
Required: 2
.NUT
Supersedes: 95303-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, spring
In stock
Only 5 remaining
$0.28
You save $0.07
15
Required: 1
PANEL, tachometer 2
Price unavailable
16
Yamaha Motors
Bind Screw98907-06010-00
Required: 4
SCREW, bind
Supersedes: 98906-06010-00
$1.53
You save $0.27
17
Yamaha Motors
Flange Nut95707-06500-00
Required: 4
NUT, flange
Supersedes: 95706-06500-00
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
