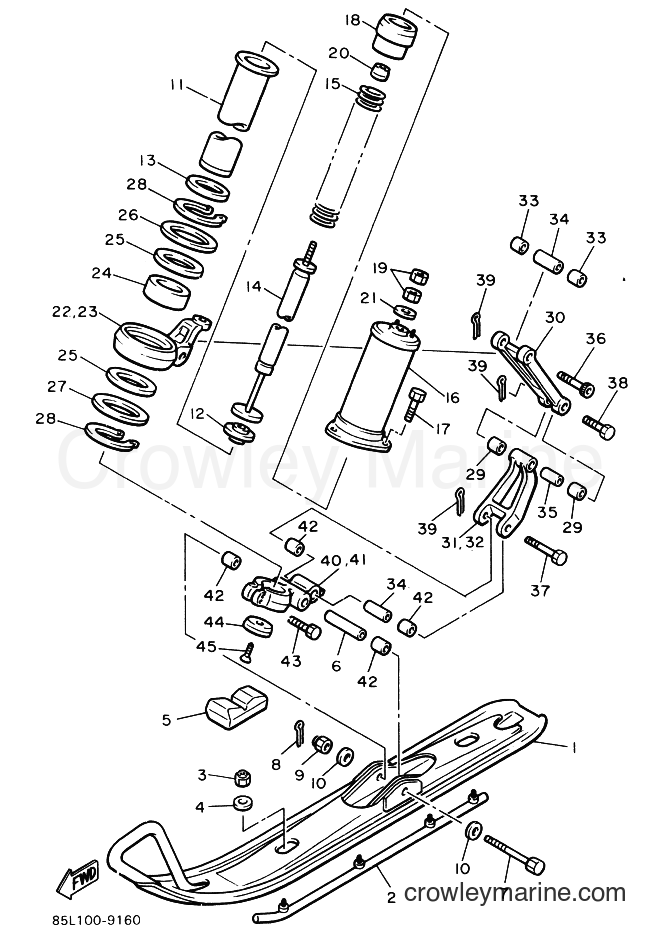

1990 Snowmobile CS340EP - CS340EP (87E1) [010] SKI diagram

1
Yamaha Motors
Ski85L-23710-00-00
Required: 2
SKI COMP. 1
$264.34
You save $46.65

2
Yamaha Motors
SKI RUNNER,1VMX-23731-01-XX
Required: 1
RUNNER 1
Supersedes: 8M6-23731-01-00
$8.88
You save $1.57
3
Yamaha Motors
NUT95617-08100-00
Required: 4
NUT, u
Supersedes: 95611-08100-00
$8.92
You save $1.57

4
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, plate
In stock
5+ in stock
$2.29
You save $0.41
$16.14
You save $2.85
$16.57
You save $2.92

7
Yamaha Motors
Washer Based Bolt90105-10438-00
Required: 2
BOLT, washer based
$9.77
You save $1.72
$1.69
You save $0.30

9
Yamaha Motors
NYLON NUT95707-10300-00
Required: 2
NUT, nylon
Supersedes: 95706-10300-00
$8.07
You save $1.42

10
Yamaha Motors
Plate Washer92907-10600-00
Required: 2
WASHER
Supersedes: 92906-10600-00
$8.07
You save $1.42

11
Yamaha Motors
Shock Absorber Cylinder85L-22471-00-00
Required: 2
CYLINDER, shock absorber
$119.84
You save $21.15
$9.77
You save $1.72
$6.37
You save $1.12

14
Yamaha Motors
ABSORBER ASSEMBLY85L-2376A-00-00
Required: 2
ABSORBER ASSY 1
$136.84
You save $24.15

15
Yamaha Motors
Compression Spring90501-653F9-00
Required: 2
SPRING, compression
$60.34
You save $10.65

16
Yamaha Motors
ABSORBER HOLDER8V0-2376J-00-00
Required: 2
HOLDER, absorber
$89.24
You save $15.75
$0.81
You save $0.14
$23.79
You save $4.20
$3.02
You save $0.53
$3.36
You save $0.59

21
Yamaha Motors
Plain Washer92990-08200-00
Required: 2
WASHER, plain
In stock
Only 2 remaining
$2.54
You save $0.45

22
Yamaha Motors
OUTSIDE ARM 185L-23851-00-00
Required: 1
ARM, outside 1
$95.19
You save $16.80

23
Yamaha Motors
OUTSIDE ARM85L-23852-00-00
Required: 1
ARM, outside 2
$95.19
You save $16.80

24
Yamaha Motors
BIMETAL FROM BUSH90384-63188-00
Required: 2
BUSH, bimetal formed
$22.09
You save $3.90
$6.79
You save $1.20

26
Yamaha Motors
Plate Washer90201-637F3-00
Required: 2
WASHER, plate
$7.22
You save $1.27

27
Yamaha Motors
Plate Washer90201-635H7-00
Required: 2
WASHER, plate
$6.79
You save $1.20
$5.94
You save $1.05

29
Yamaha Motors
BIMETAL FROM BUSH90384-14091-00
Required: 4
BUSH, bimetal formed
$10.62
You save $1.87
$60.34
You save $10.65

31
Yamaha Motors
FRONT ARM8V0-2382F-02-00
Required: 1
ARM, front 2 (L,H)
$60.34
You save $10.65

32
Yamaha Motors
ARM,FRONT 48V0-2383F-02-00
Required: 1
ARM, front 4 (R,H)
$57.57
You save $10.16

33
Yamaha Motors
BIMETAL FROM BUSH90384-14096-00
Required: 4
BUSH, bimetal formed
$10.62
You save $1.87

34
Yamaha Motors
COLLAR90387-101Y9-00
Required: 4
COLLAR
Supersedes: 90387-10089-00
$27.19
You save $4.80
$5.09
You save $0.90

36
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10173-00
Required: 2
BOLT, hexagon socket head
$33.99
You save $6.00

37
Yamaha Motors
BOLT,WITH HOLE90102-10054-00
Required: 2
BOLT, with hole
$7.22
You save $1.27

38
Yamaha Motors
BOLT,WITH HOLE90102-10055-00
Required: 2
BOLT, with hole
$6.79
You save $1.20
$1.69
You save $0.30

40
Yamaha Motors
BRACKET 181E-2376E-00-00
Required: 1
BRACKET 1 (L,H)
$182.74
You save $32.25

41
Yamaha Motors
Bracket 281E-2377E-00-00
Required: 1
BRACKET 2 (R,H)
$179.34
You save $31.65

42
Yamaha Motors
BIMETAL FROM BUSH90384-14091-00
Required: 8
BUSH, bimetal formed
$10.62
You save $1.87
$1.53
You save $0.27
$10.19
You save $1.80

45
Yamaha Motors
Flat Head Screw98707-06016-00
Required: 2
SCREW, countersunk
Supersedes: 90151-06042-00
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
