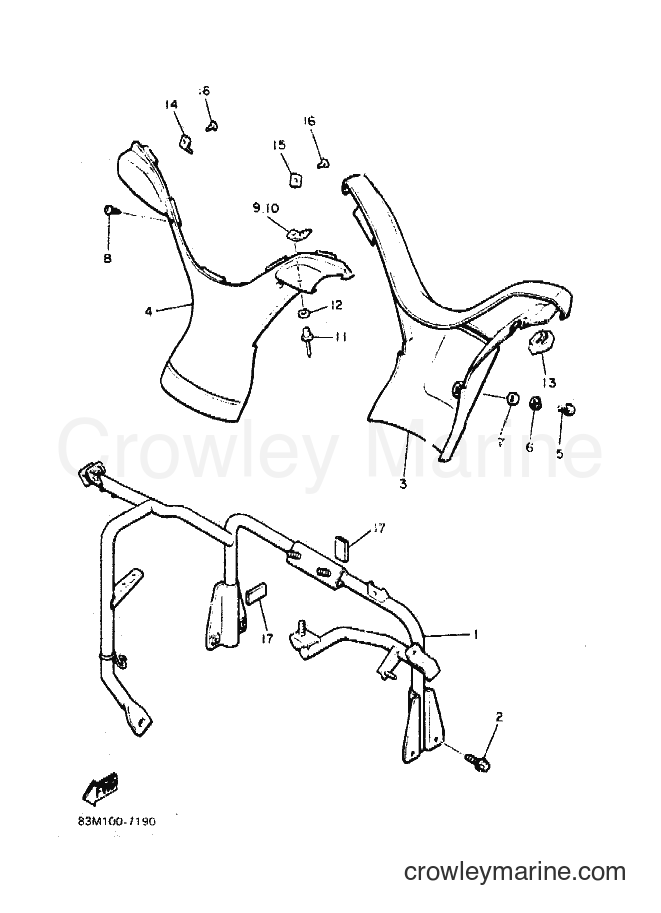

1990 Snowmobile CF300P - CF300P (86W1) [010] STEERING GATE diagram

1
Yamaha Motors
Steering Gate83M-23870-00-00
Required: 1
STEERING GATE COMP.
$243.09
You save $42.90
-50%
2
Yamaha Motors
Flange Bolt95817-08012-00
Required: 5
BOLT, flange
Supersedes: 95811-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
3
Required: 1
PAD, steering
Price unavailable
4
Required: 1
PAD, steering
Price unavailable

5
Yamaha Motors
98516-05012-0098506-05012-00
Required: 3
SCREW, pan head
$1.06
You save $0.19

6
Yamaha Motors
Spring Washer92907-05100-00
Required: 3
WASHER, spring
Supersedes: 92906-05100-00
$8.07
You save $1.42

7
Yamaha Motors
Plate Washer90201-05029-00
Required: 3
WASHER, plate
Supersedes: 90201-05721-00
$8.07
You save $1.42

8
Yamaha Motors
Tapping Screw97706-50116-00
Required: 2
SCREW, tapping
$0.25
You save $0.04
$6.79
You save $1.20
$4.67
You save $0.82
$4.67
You save $0.82

12
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, plate
Supersedes: 90201-05721-00
$8.07
You save $1.42
$6.12
You save $1.08
$7.64
You save $1.35
$7.64
You save $1.35
$8.07
You save $1.42
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors CF300P (86W1) [010] - STEERING GATE](https://cdn.crowleymarine.com/yamaha/QdjOIFm3.png)
