1990 Snowmobile BR250TFP - BR250TFP (86D2) [999] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

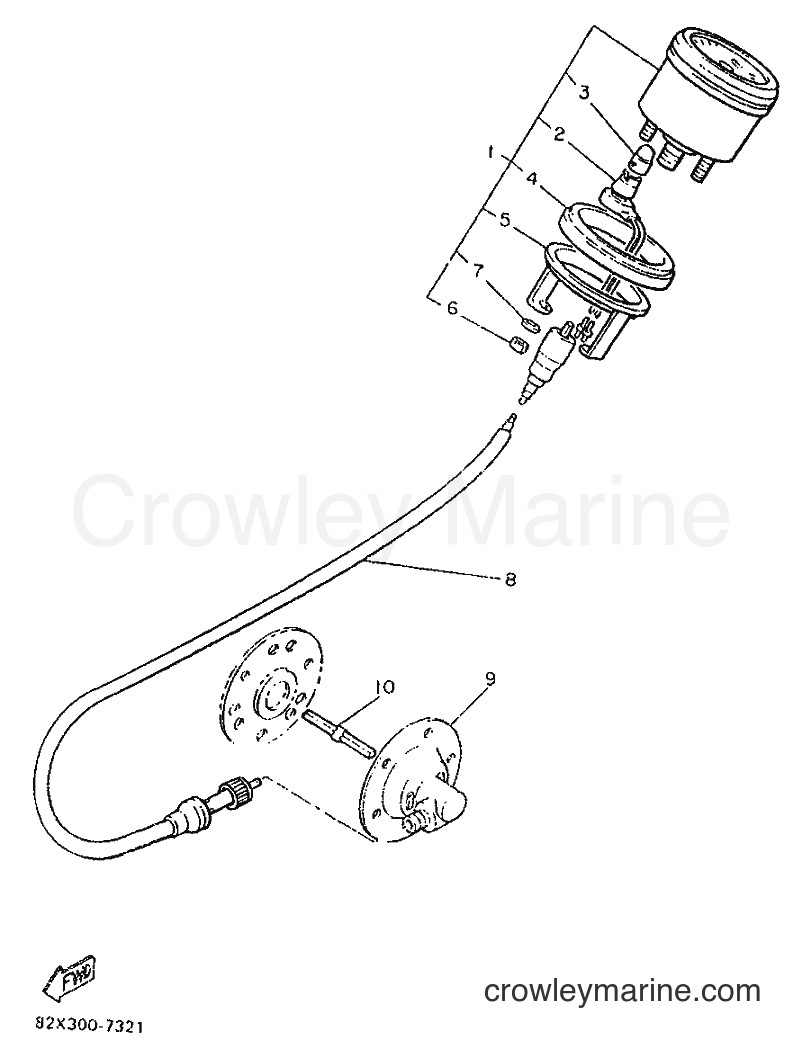

Yamaha Motors BR250TFP (86D2) [999] - METER
Change View:
SPEEDOMETER ASSEMBLY
1
Yamaha Motors
SPEEDOMETER ASSEMBLY80V-83510-20-00
Required: 1
SPEEDOMETER ASSY
Cross Ship
Leaves in 2-5 days
$124.99
$106.24
You save $18.75
More details
Socket Cord Assembly
2
Yamaha Motors
Socket Cord Assembly5E2-83509-20-00
Required: 1
. SOCKET, METER
Supersedes: 8V7-83536-40-00
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
4G1-84744-00-XX
3
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
. BULB (12V-5W)
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
DAMPER 2
4
Yamaha Motors
DAMPER 28G6-83523-00-00
Required: 1
. DAMPER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
. BRACKET, METER
Price unavailable
Nut
6
Yamaha Motors
Nut95303-05600-00
Required: 2
. NUT
Supersedes: 95301-05600-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Speedometer Cable
8
Yamaha Motors
Speedometer Cable8Y8-83550-00-00
Required: 1
SPEEDOMETER CABLE ASSY
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
Meter Gear Housing
9
Yamaha Motors
Meter Gear Housing8R4-47700-00-00
Required: 1
METER GEAR HOUSING COMP.
Cross Ship
Leaves in 2-5 days
$109.99
$93.49
You save $16.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
