1988 Snowmobile EC340 - EC340 (84H0) [020] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

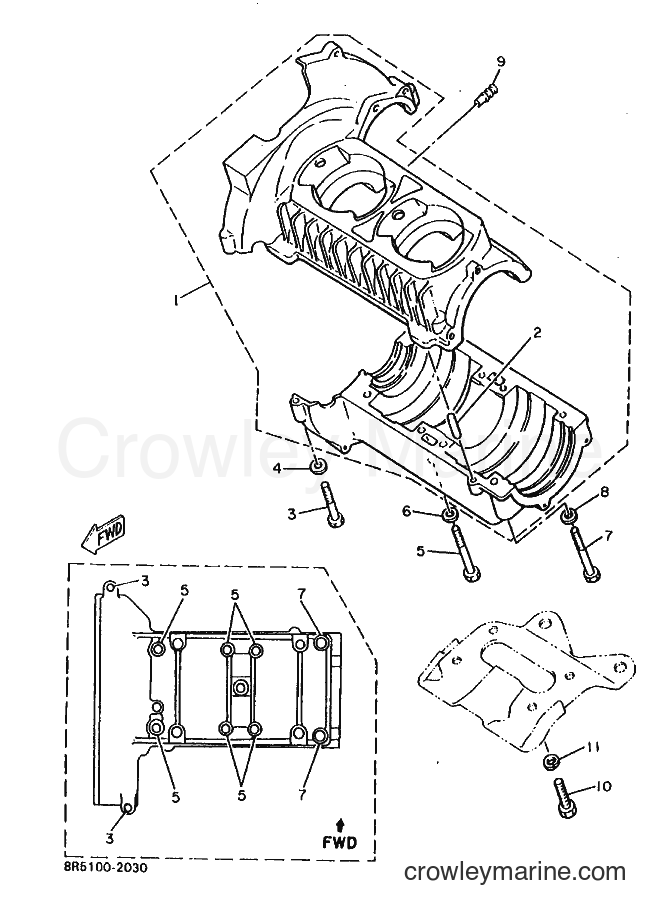

Yamaha Motors EC340 (84H0) [020] - CRANKCASE
Change View:
CRANKCASE ASSEMBLY
1
Yamaha Motors
CRANKCASE ASSEMBLY8J9-15100-01-00
Required: 1
CRANKCASE ASSY
Supersedes: 8J9-15100-00-00
Cross Ship
Leaves in 2-5 days
$423.99
$360.39
You save $63.60
More details
Hexagonal BOLT
3
Yamaha Motors
Hexagonal BOLT97313-08040-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
Bolt (663)
5
Yamaha Motors
Bolt (663)97013-08060-00
Required: 6
BOLT
Supersedes: 97313-08060-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
97027-08070-00
7
Yamaha Motors
97027-08070-0097021-08070-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
JOINT PIPE
9
Yamaha Motors
JOINT PIPE8G8-24461-00-00
Required: 1
PIPE, joint
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Dome Head Bolt
10
Yamaha Motors
Dome Head Bolt90106-10034-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
