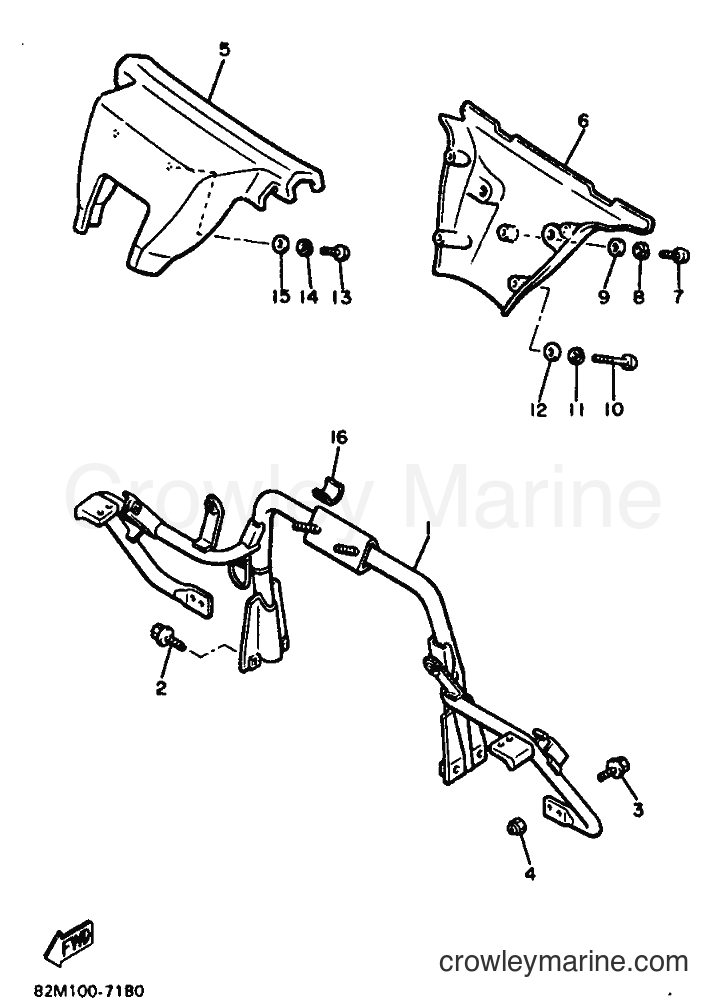

1987 Snowmobile EX570 - EX570 (82M) [999] STEERING GATE diagram
![Yamaha Motors EX570 (82M) [999] - STEERING GATE](https://cdn.crowleymarine.com/yamaha/dqqTYZeV.png)
1
Yamaha Motors
Steering Gate Component84M-23870-00-00
Required: 1
STEERING GATE COMP.
Supersedes: 82M-23870-00-00
$201.44
You save $35.55
2
Required: 4
BOLT, WASHER BASED
Price unavailable
3
Required: 4
BOLT, STUD
Price unavailable
4
Yamaha Motors
Flange Nut95707-06300-00
Required: 4
NUT, NYLON
Supersedes: 95701-06300-00
$3.19
You save $0.56
5
Yamaha Motors
Steering Pad82M-23815-01-00
Required: 1
PAD, STEERING
Supersedes: 82M-23815-00-00
$173.39
You save $30.60
6
Yamaha Motors
Steering Pad80L-23817-02-00
Required: 1
PAD, STEERING
Supersedes: 80L-23817-00-00
$61.19
You save $10.80
7
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
8
Yamaha Motors
Spring Washer92907-05100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-05100-00
$8.07
You save $1.42
9
Yamaha Motors
PLAIN WASHER92907-05200-00
Required: 1
WASHER, PLAIN
Supersedes: 92906-05200-00
$4.08
You save $0.72
10
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98506-05030-00
$9.77
You save $1.72
11
Yamaha Motors
Spring Washer92907-05100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-05100-00
$8.07
You save $1.42
12
Yamaha Motors
Plate Washer92907-05600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-05600-00
$0.85
You save $0.15
13
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
$0.98
You save $0.17
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
15
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
