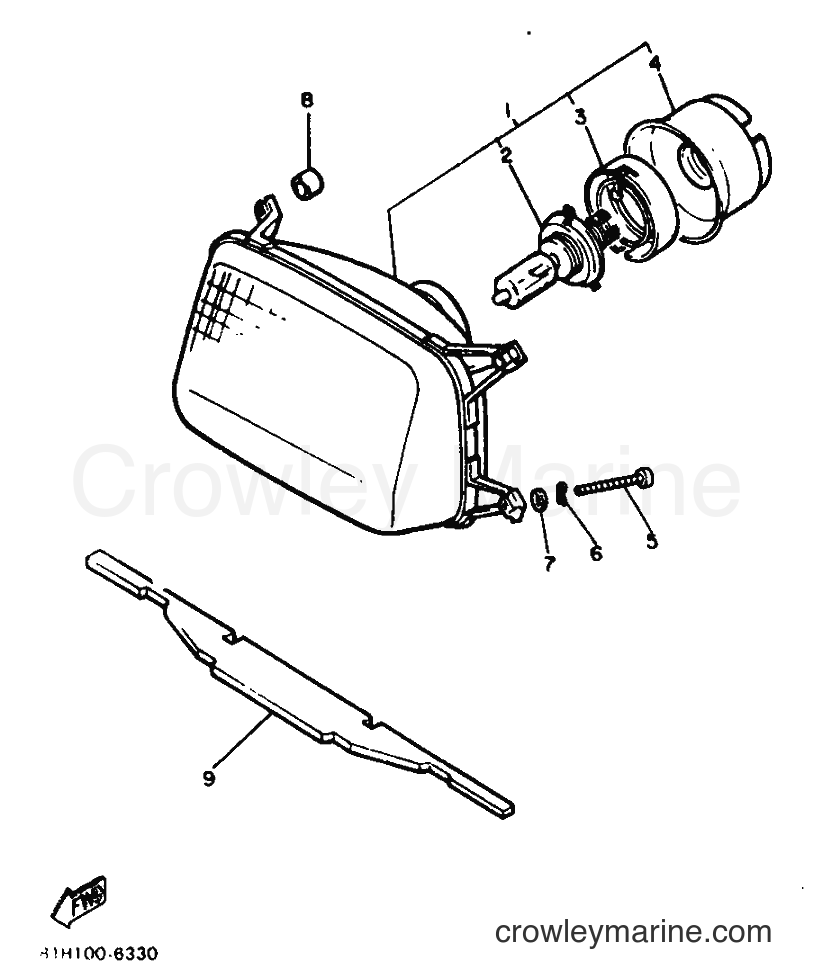

1987 Snowmobile EX570 - EX570 (82M) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EX570 (82M) [999] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSEMBLY
1
Yamaha Motors
HEADLIGHT UNIT ASSEMBLY86M-84310-00-00
Required: 1
HEADLIGHT UNIT ASSY
Supersedes: 8V0-84310-00-00
Cross Ship
Leaves in 2-5 days
$313.99
$266.89
You save $47.10
More details
2
Required: 1
. BULB (12V-60/55W)
Price unavailable
Socket
3
Yamaha Motors
Socket8A7-84312-00-00
Required: 1
. HOLDER, SOCKET
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
Socket Cover
4
Yamaha Motors
Socket Cover8A7-84397-01-00
Required: 1
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
SCREW ADJUST
5
Yamaha Motors
SCREW ADJUST8V0-84331-00-00
Required: 4
SCREW, RIM ADJUSTING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Clip
6
Yamaha Motors
Clip90468-12006-00
Required: 4
CLIP
Supersedes: 8V0-84374-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
7
Yamaha Motors
Plate Washer90201-090P4-00
Required: 4
WASHER, SPECIAL
Supersedes: 8V0-84327-00-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Headlight Damper
8
Yamaha Motors
Headlight Damper8V0-84366-00-00
Required: 4
DAMPER, HEADLIGHT 1
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
Headlight Damper
9
Yamaha Motors
Headlight Damper8W6-84366-00-00
Required: 1
DAMPER, HEADLIGHT 1
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
