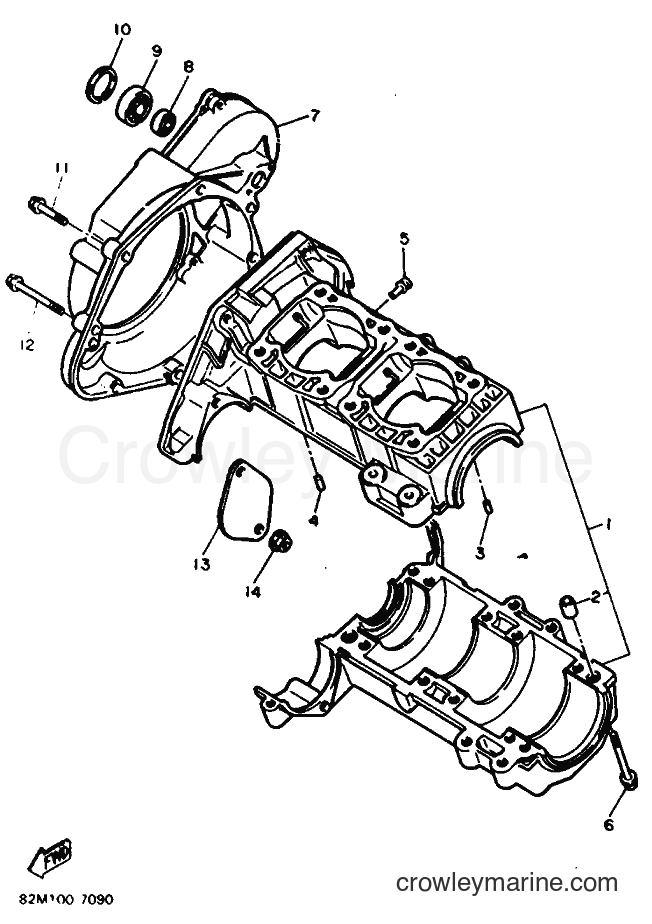

1987 Snowmobile EX570 - EX570 (82M) [999] CRANKCASE diagram
![Yamaha Motors EX570 (82M) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/i4jqpDId.png)
1
Yamaha Motors
84N-15100-02-0082M-15100-01-00
Required: 1
CRANKCASE ASSY
Supersedes: 82M-15100-00-00
$571.19
You save $100.80
2
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
. PIN, DOWEL
In stock
Only 2 remaining
$4.16
You save $0.73
$2.29
You save $0.41
$3.44
You save $0.61
5
Yamaha Motors
Breather JointJ38-11116-00-00
Required: 1
JOINT, BREATHER
In stock
Only 1 remaining
$3.23
You save $0.57
6
Yamaha Motors
Flange Bolt (8BN)95817-08085-00
Required: 12
BOLT, FLANGE
Supersedes: 95821-08085-00
$4.21
You save $0.74
7
Yamaha Motors
Crankcase Cover82M-15421-00-00
Required: 1
COVER, CRANKCASE 2
$198.89
You save $35.10
8
Required: 1
OIL SEAL
Price unavailable
$32.29
You save $5.70
$0.47
You save $0.08
11
Yamaha Motors
Flange Bolt95817-08040-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-08040-00
In stock
Only 2 remaining
$6.37
You save $1.12
12
Yamaha Motors
Flange Bolt95817-08060-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08060-00
$4.08
You save $0.72
$3.40
You save $0.60
In stock
Only 2 remaining
$0.89
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
