All diagrams for this model

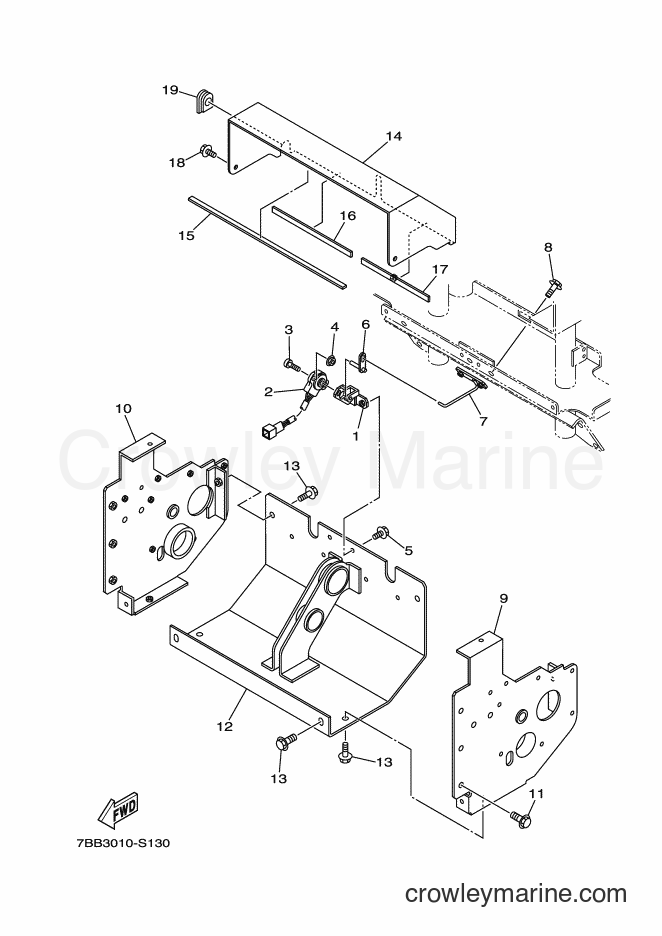

2018 Snowblower YS1390A - YS1390A (7BB3) [010] FRAME 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS1390A (7BB3) [010] - FRAME 2
Change View:
1
Required: 1
STAY 1
Price unavailable
2
Required: 1
SENSOR ANGLE
Price unavailable
3
Required: 2
BOLT
Price unavailable
Flange Nut
4
Yamaha Motors
Flange Nut95702-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
6
Required: 1
LEVER 1
Price unavailable
7
Required: 1
LEVER 2
Price unavailable
Flange Bolt
8
Yamaha Motors
Flange Bolt95822-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.10
$0.08
You save $0.01
More details
9
Required: 1
RR. FRAME
Price unavailable
10
Required: 1
RR. FRAME
Price unavailable
Flange Bolt (3HP)
11
Yamaha Motors
Flange Bolt (3HP)95817-10016-00
Required: 12
BOLT, FLANGE
Supersedes: 95822-10016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
FRAME UNDER 1
Price unavailable
95814-08016-00
13
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
14
Required: 1
COVER, LINK
Price unavailable
15
Required: 1
DAMPER
Price unavailable
16
Required: 1
DAMPER 2
Price unavailable
17
Required: 1
DAMPER 3
Price unavailable
Grommet
19
Yamaha Motors
Grommet90480-17441-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
