2017 Snowblower YU240 - YU240 (7JC1) [010] AUGA DRIVEN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

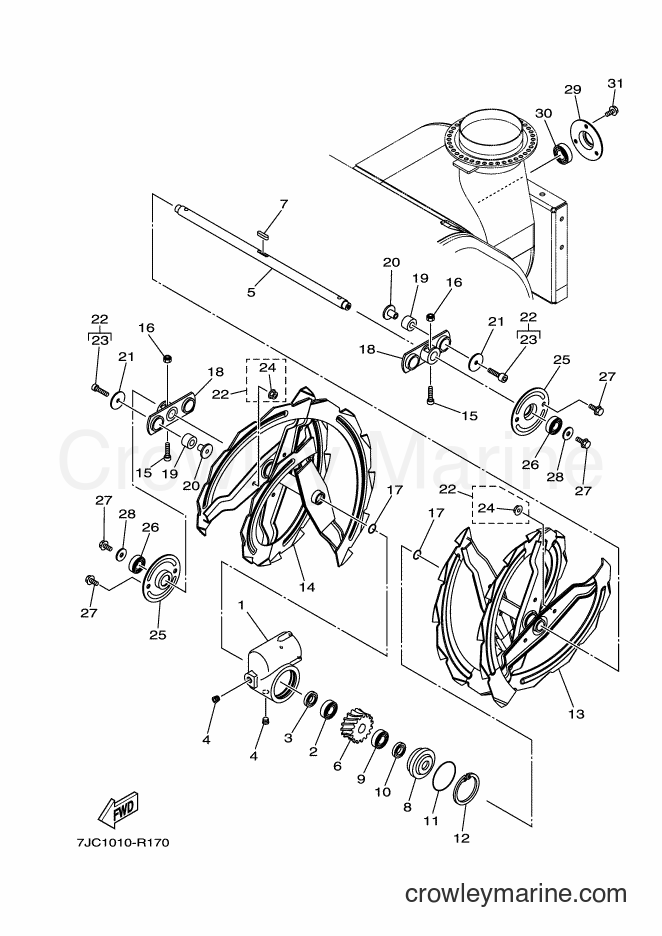

Yamaha Motors YU240 (7JC1) [010] - AUGA DRIVEN
Change View:
1
Required: 1
CASE, WORM
Price unavailable
2
Required: 1
BEARING
Price unavailable
-50%
SD-TYPE OIL SEAL
3
Yamaha Motors
SD-TYPE OIL SEAL93102-15212-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$10.49
$5.25
You save $5.25
More details
4
Required: 2
PLUG, DRAIN
Price unavailable
5
Required: 1
SHAFT, AUGER
Price unavailable
6
Required: 1
WORM, WHEEL
Price unavailable
7
Required: 1
KEY, STRAIGHT
Price unavailable
8
Required: 1
COVER 1
Price unavailable
9
Required: 1
BEARING
Price unavailable
-50%
SD-TYPE OIL SEAL
10
Yamaha Motors
SD-TYPE OIL SEAL93102-15212-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$10.49
$5.25
You save $5.25
More details
11
Required: 1
O-RING
Price unavailable
12
Required: 1
CIRCLIP
Price unavailable
13
Required: 1
AUGER 1
Price unavailable
14
Required: 1
AUGER 2
Price unavailable
Flange Nut
16
Yamaha Motors
Flange Nut95707-06300-00
Required: 2
NUT, NYLON
Supersedes: 95702-06300-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
O-Ring
17
Yamaha Motors
O-Ring93210-14579-00
Required: 2
O-RING
Supersedes: 93210-14104-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
18
Required: 2
BRACKET 1
Price unavailable
19
Required: 4
DAMPER
Price unavailable
20
Required: 4
COLLAR
Price unavailable
Plain Washer
21
Yamaha Motors
Plain Washer90201-06090-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
BOLT, SHEAR SET
Price unavailable
U Flange Nut
24
Yamaha Motors
U Flange Nut95604-06200-00
Required: 4
. NUT, SELF-LOCKING
Supersedes: 95602-06200-00
Cross Ship
Leaves in 2-5 days
$2.95
$2.89
You save $0.06
More details
25
Required: 2
HOUSING, BEARING 2
Price unavailable
26
Required: 2
BEARING
Price unavailable
Plain Washer
28
Yamaha Motors
Plain Washer90201-06078-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
29
Required: 1
HOUSING, BEARING 3
Price unavailable
30
Required: 1
BEARING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
