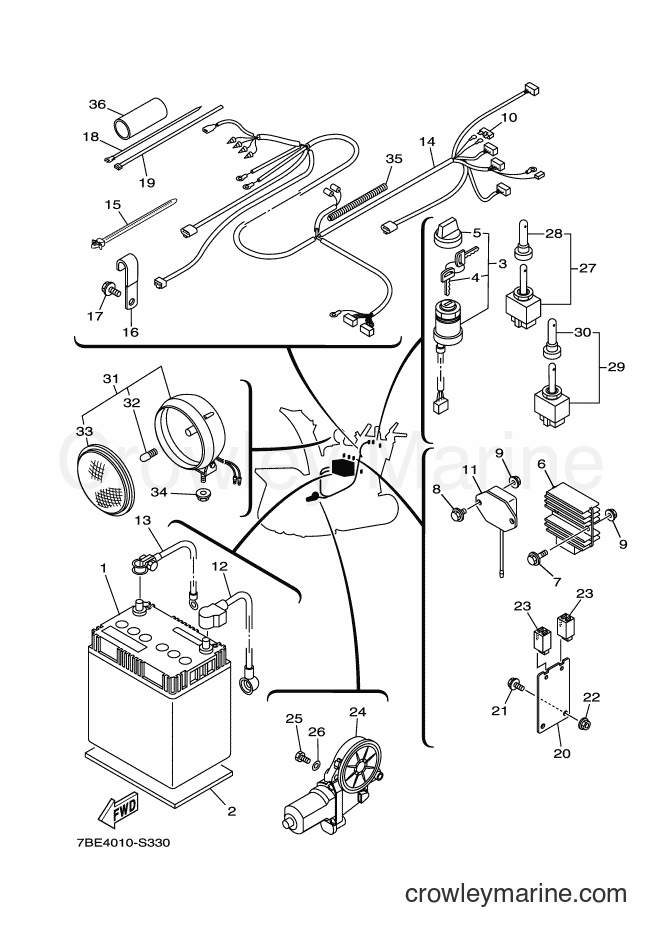

2017 Snowblower YT1380X - YT1380X (7BE4) [010] ELECTRICAL 1 diagram
![Yamaha Motors YT1380X (7BE4) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/1qGZ9ULz.png)
2
Required: 1
SEAT, BATTERY
Price unavailable
3
Yamaha Motors
Obsolete Yamaha Part7MN-82510-00-00
Required: 1
MAIN SWITCH ASSY
$48.44
You save $8.55
4
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
$12.32
You save $2.17
$32.29
You save $5.70
6
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
7
Yamaha Motors
Flange Bolt95817-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06025-00
$1.49
You save $0.26
8
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
In stock
Only 1 remaining
$2.21
You save $0.39
$7.22
You save $1.27
11
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
$66.29
You save $11.70
12
Required: 1
WIRE, PLUS LEAD
Price unavailable
13
Required: 1
WIRE, MINUS LEAD
Price unavailable
14
Required: 1
WIRE HARNESS ASSY
Price unavailable
$8.07
You save $1.42
16
Required: 4
CLAMP, WIRE
Price unavailable
17
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
18
Required: 8
BAND
Price unavailable
19
Required: 3
BAND
Price unavailable
20
Required: 1
HOLDER, RELAY
Price unavailable
21
Yamaha Motors
95814-08016-0095821-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
23
Required: 2
RELAY ASSY
Price unavailable
24
Required: 1
MOTOR ASSY
Price unavailable
25
Required: 3
BOLT, SPECIAL
Price unavailable
26
Yamaha Motors
Plain Washer92990-05200-00
Required: 3
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$4.25
You save $0.75
$62.04
You save $10.95
28
Required: 1
. COVER, SWITCH
Price unavailable
29
Required: 1
SWITCH
Price unavailable
30
Required: 1
. COVER, SWITCH
Price unavailable
31
Required: 1
HEADLIGHT ASSY
Price unavailable
32
Required: 1
. BULB(12V-23W)
Price unavailable
33
Required: 1
. LENS, HEADLIGHT
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
35
Required: 1
TUBE
Price unavailable
36
Required: 1
COVER, CONNECTOR
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
