All diagrams for this model

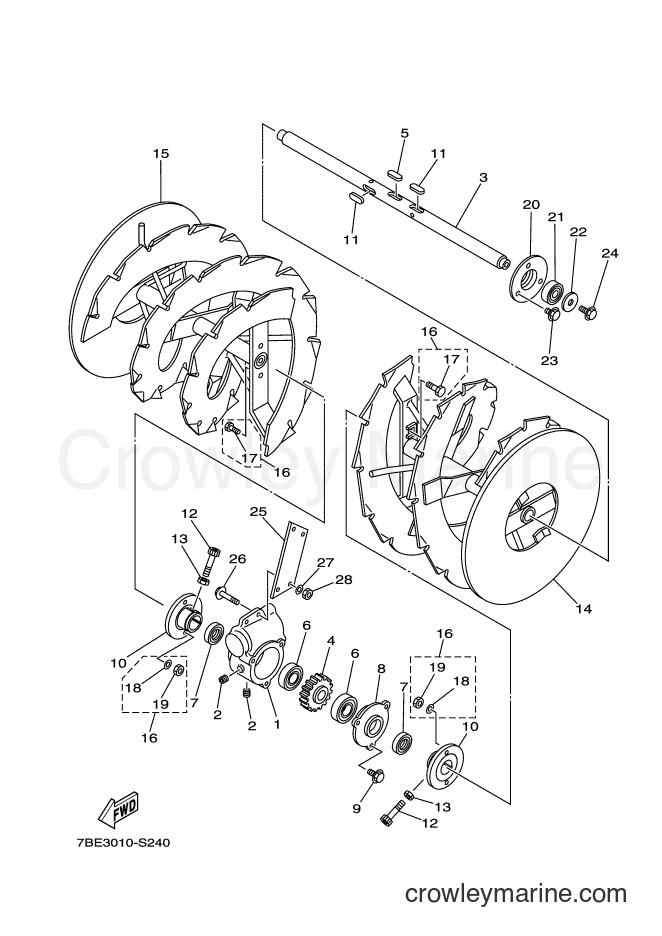

2017 Snowblower YT1380X - YT1380X (7BE4) [010] AUGA DRIVEN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YT1380X (7BE4) [010] - AUGA DRIVEN
Change View:
1
Required: 1
CASE, WORM
Price unavailable
2
Required: 2
PLUG, DRAIN
Price unavailable
3
Required: 1
SHAFT, AUGER
Price unavailable
4
Required: 1
WORM, WHEEL
Price unavailable
5
Required: 1
KEY
Price unavailable
6
Required: 2
BEARING 2
Price unavailable
7
Required: 2
SEAL, OIL
Price unavailable
8
Required: 1
COVER 1
Price unavailable
95814-08016-00
9
Yamaha Motors
95814-08016-0095821-08016-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
10
Required: 2
BRACKET ASSY
Price unavailable
11
Required: 2
KEY
Price unavailable
12
Required: 2
BOLT, SPECIAL 1
Price unavailable
Self-Locking Nut
13
Yamaha Motors
Self-Locking Nut90185-08162-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details
14
Required: 1
AUGER 2
Price unavailable
15
Required: 1
AUGER 1
Price unavailable
16
Required: 1
BOLT, SHEAR SET
Price unavailable
17
Required: 4
. BOLT, SPECIAL 2
Price unavailable
18
Required: 4
. WASHER, SPECIAL
Price unavailable
Self-Locking Nut
19
Yamaha Motors
Self-Locking Nut90185-08162-00
Required: 4
. NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details
20
Required: 2
RETAINER
Price unavailable
21
Required: 2
BEARING 3
Price unavailable
22
Required: 2
WASHER, SPECIAL
Price unavailable
95814-08016-00
23
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
Flange Bolt
24
Yamaha Motors
Flange Bolt95822-08020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
25
Required: 1
STAY, DOCUMENT BOX
Price unavailable
95811-08030-00
26
Yamaha Motors
95811-08030-0095821-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08030-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Spring Washer
27
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
28
Yamaha Motors
Self-Locking Nut90185-08162-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
