All diagrams for this model

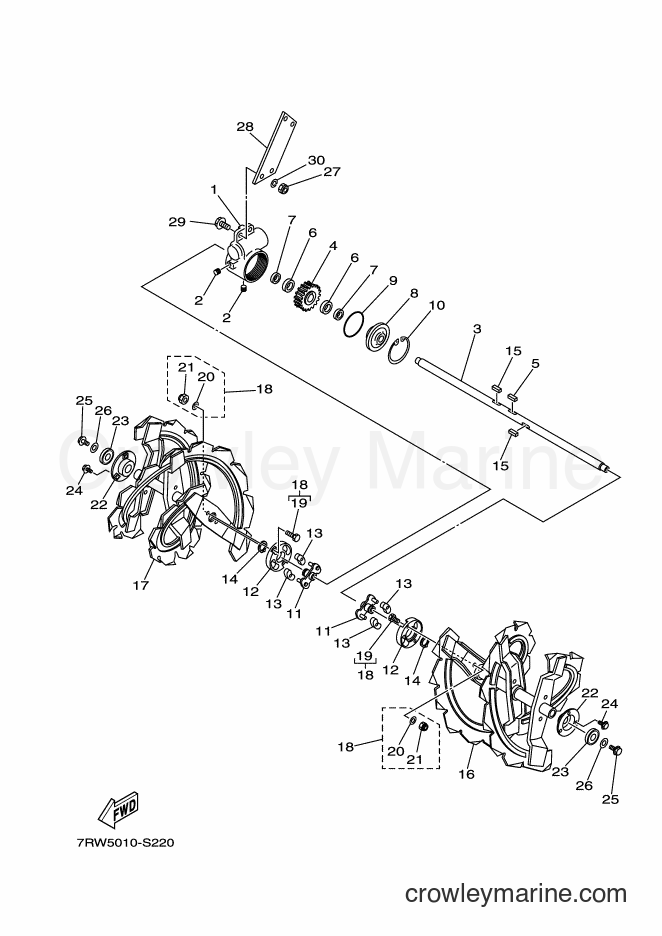

2017 Snowblower YT1070 - YT1070 (7RW5) [010] AUGA DRIVEN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YT1070 (7RW5) [010] - AUGA DRIVEN
Change View:
1
Required: 1
CASE, WORM
Price unavailable
2
Required: 2
PLUG, DRAIN
Price unavailable
3
Required: 1
SHAFT, AUGER
Price unavailable
4
Required: 1
WORM, WHEEL
Price unavailable
5
Required: 1
KEY
Price unavailable
6
Required: 2
BEARING
Price unavailable
7
Required: 2
SEAL, OIL
Price unavailable
8
Required: 1
COVER 1
Price unavailable
9
Required: 1
O-RING 2
Price unavailable
10
Required: 1
CIRCLIP
Price unavailable
11
Required: 2
BRACKET 1
Price unavailable
12
Required: 2
BRACKET 2
Price unavailable
13
Required: 4
DAMPER
Price unavailable
15
Required: 2
KEY
Price unavailable
16
Required: 1
AUGER 2
Price unavailable
17
Required: 1
AUGER 1
Price unavailable
18
Required: 1
BOLT, SHEAR SET
Price unavailable
Plain Washer
20
Yamaha Motors
Plain Washer90201-06102-00
Required: 4
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
U Flange Nut
21
Yamaha Motors
U Flange Nut95604-06200-00
Required: 4
. NUT, SELF-LOCKING
Supersedes: 95602-06200-00
Cross Ship
Leaves in 2-5 days
$2.95
$2.89
You save $0.06
More details
Bearing Housing
22
Yamaha Motors
Bearing Housing7KA-51626-00-00
Required: 2
HOUSING, BEARING 2
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BEARING
23
Yamaha Motors
BEARING93306-20348-00
Required: 2
BEARING
Supersedes: 93306-20331-00
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
95814-08016-00
25
Yamaha Motors
95814-08016-0095821-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
26
Required: 2
WASHER, SPECIAL
Price unavailable
Self-Locking Nut
27
Yamaha Motors
Self-Locking Nut90185-08162-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details
28
Required: 1
STAY, DOCUMENT BOX
Price unavailable
Bolt Flange (4LN)
29
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Spring Washer
30
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
