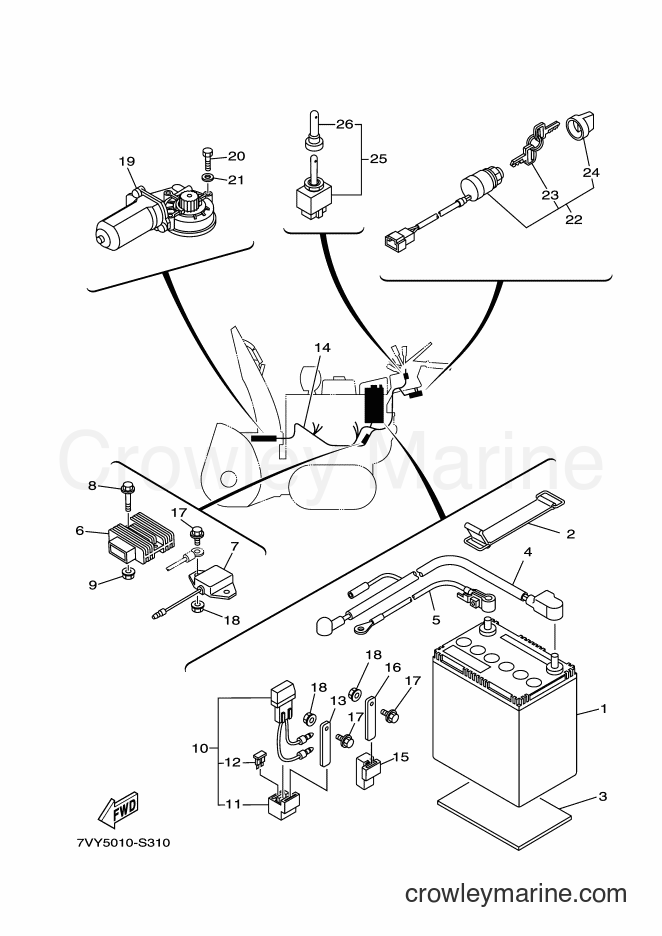

2017 Snowblower YS860 - YS860 (7VY5) [010] ELECTRICAL 1 diagram
![Yamaha Motors YS860 (7VY5) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/MKRV7dWc.png)
2
Yamaha Motors
Battery Band26H-82131-00-00
Required: 1
BAND, BATTERY
$22.09
You save $3.90
3
Required: 1
SEAT, BATTERY
Price unavailable
4
Required: 1
WIRE, PLUS LEAD
Price unavailable
5
Required: 1
WIRE, MINUS LEAD
Price unavailable
6
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
7
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
$66.29
You save $11.70
$1.44
You save $0.26
In stock
Only 1 remaining
$2.21
You save $0.39
10
Required: 1
FUSE HOLDER ASSY
Price unavailable
$4.05
You save $0.72
12
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
$7.22
You save $1.27
13
Required: 1
STAY, FUSE HOLDER
Price unavailable
14
Required: 1
WIRE HARNESS ASSY
Price unavailable
15
Required: 1
RELAY ASSY
Price unavailable
16
Required: 1
STAY, FUSE HOLDER
Price unavailable
17
Yamaha Motors
Flange Bolt95817-06012-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
In stock
Only 1 remaining
$2.21
You save $0.39
19
Required: 1
MOTOR ASSY
Price unavailable
20
Required: 3
BOLT, SPECIAL
Price unavailable
21
Yamaha Motors
Plain Washer92990-05200-00
Required: 3
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$4.25
You save $0.75
22
Required: 1
MAIN SWITCH ASSY
Price unavailable
23
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
$12.32
You save $2.17
$32.29
You save $5.70
$62.04
You save $10.95
26
Required: 1
. COVER, SWITCH
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
