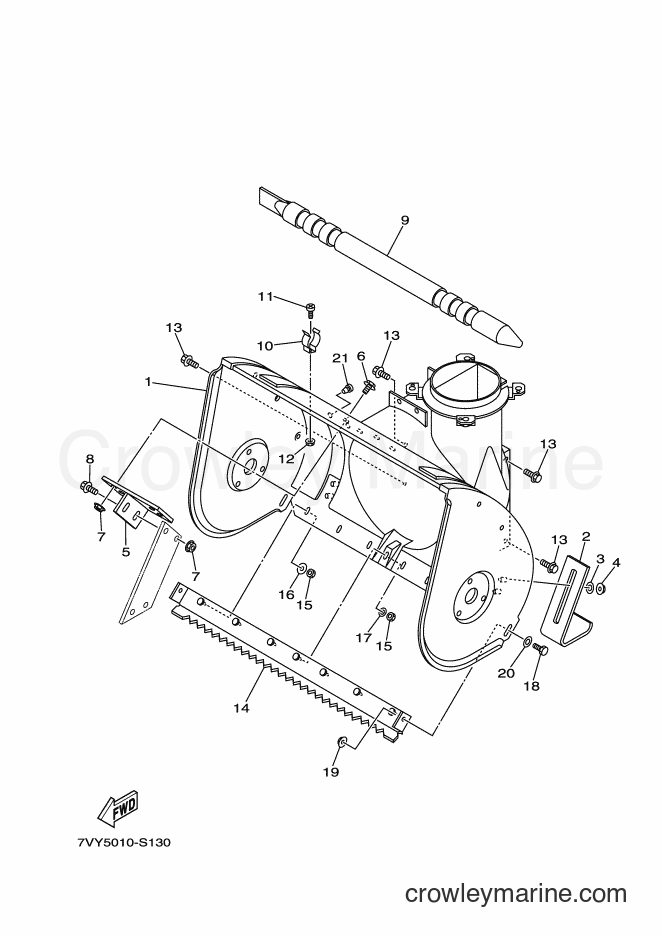

2017 Snowblower YS860 - YS860 (7VY5) [010] AUGA CASE diagram
![Yamaha Motors YS860 (7VY5) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/dyS8cRDo.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 2
SKID
Price unavailable
3
Required: 4
WASHER, SPECIAL 1
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
5
Required: 1
BRACKET 1
Price unavailable
6
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
$0.26
You save $0.05
$29.74
You save $5.25
$14.02
You save $2.47
11
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
$0.81
You save $0.14
$0.26
You save $0.05
14
Required: 1
SCRAPER
Price unavailable
15
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$2.46
You save $0.44
16
Required: 6
WASHER, SPECIAL 2
Price unavailable
17
Required: 1
WASHER, SPECIAL 2
Price unavailable
$0.26
You save $0.05
In stock
Only 2 remaining
$0.89
You save $0.16
20
Required: 2
WASHER, SPECIAL 1
Price unavailable
21
Yamaha Motors
Plug90338-07180-00
Required: 6
PLUG
Supersedes: 90338-06018-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
