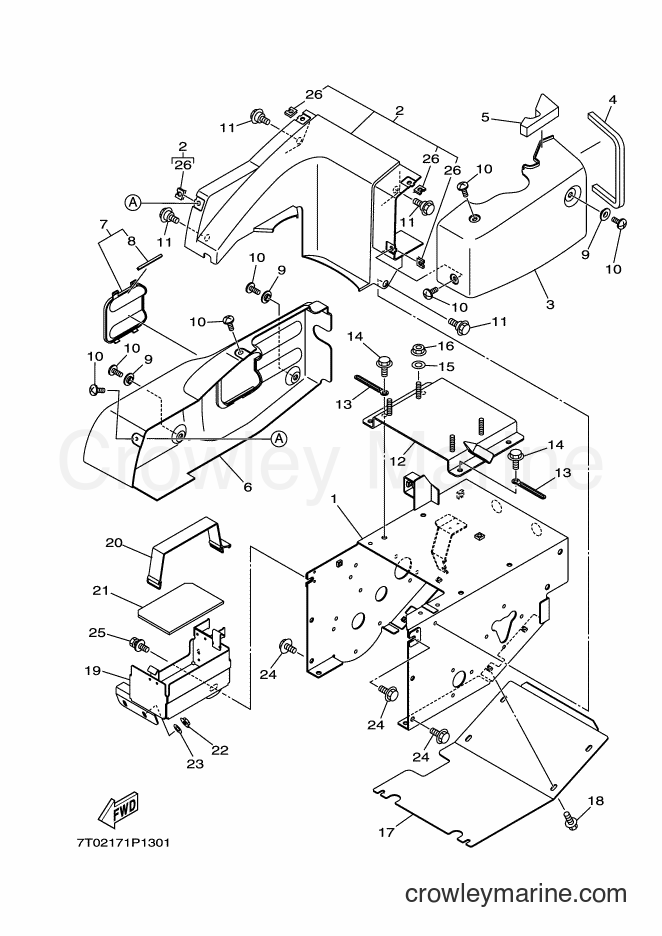

2016 Snowblower YT660 - YT660 (7T02) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YT660 (7T02) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
COVER 1
Price unavailable
3
Required: 1
COVER
Price unavailable
4
Required: 1
DAMPER 1
Price unavailable
5
Required: 1
DAMPER 4
Price unavailable
6
Required: 1
COVER, BATTERY
Price unavailable
7
Required: 1
COVER ASSY 8
Price unavailable
8
Required: 1
. DAMPER 3
Price unavailable
9
Required: 3
COLLAR, DISTANCE
Price unavailable
Binding Screw
10
Yamaha Motors
Binding Screw90154-06014-00
Required: 7
SCREW, BINDING
Supersedes: 90154-06823-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BOLT
11
Yamaha Motors
BOLT90109-06190-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
12
Required: 1
BRACKET, ENGINE 1
Price unavailable
Clamp
13
Yamaha Motors
Clamp90462-08001-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
95814-08016-00
14
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
WASHER
15
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
17
Required: 1
PLATE 1
Price unavailable
19
Required: 1
CASE
Price unavailable
20
Required: 1
BAND, BATTERY
Price unavailable
21
Required: 1
SEAT, BATTERY
Price unavailable
Plain Washer
23
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
95811-08012-00
24
Yamaha Motors
95811-08012-0095812-08012-00
Required: 5
BOLT, FLANGE
Supersedes: 95822-08012-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
25
Required: 1
BOLT, WITH WASHER
Price unavailable
Spring Nut
26
Yamaha Motors
Spring Nut90183-06808-00
Required: 4
. NUT, SPRING
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
