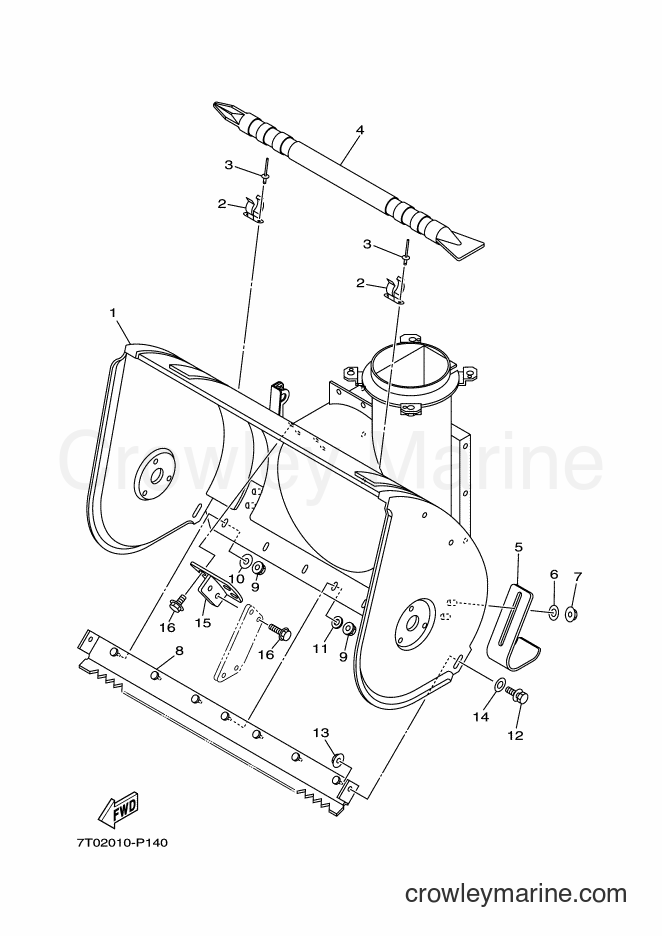

2016 Snowblower YT660 - YT660 (7T02) [010] AUGA CASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YT660 (7T02) [010] - AUGA CASE
Change View:
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 2
HOLDER
Price unavailable
3
Required: 4
RIVET, BLIND
Price unavailable
4
Required: 1
BAR
Price unavailable
5
Required: 2
SKID
Price unavailable
6
Required: 4
WASHER, PLATE
Price unavailable
8
Required: 1
SCRAPER
Price unavailable
NUT
9
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
Plain Washer
10
Yamaha Motors
Plain Washer90201-06036-00
Required: 6
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
WASHER, PLATE
Price unavailable
12
Required: 2
BOLT, WITH WASHER
Price unavailable
14
Required: 2
WASHER, PLATE
Price unavailable
15
Required: 1
BRACKET 1
Price unavailable
95814-08016-00
16
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
