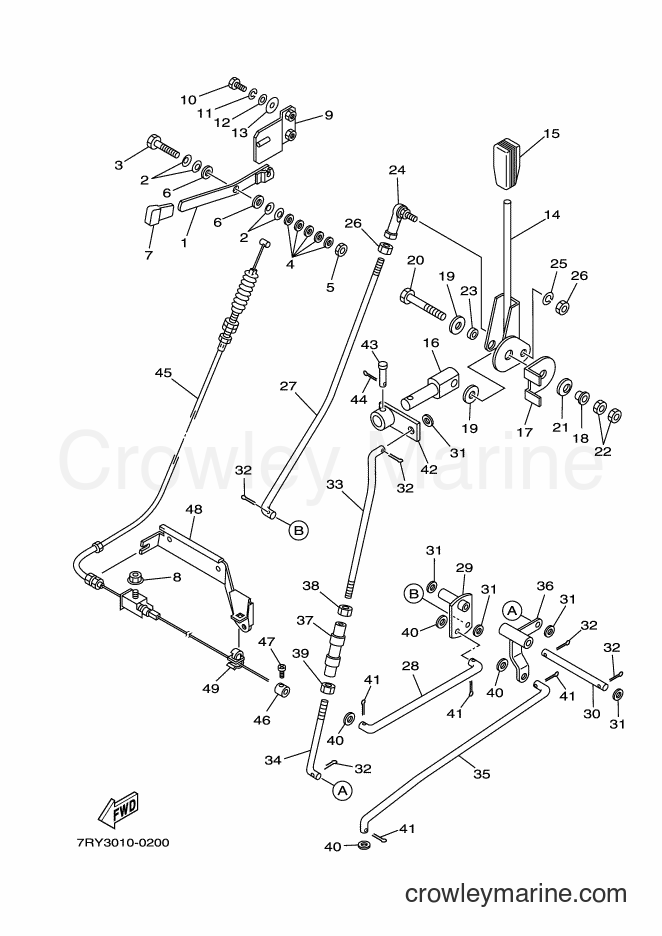

2016 Snowblower YT1280EX - YT1280EX (7BE2) [010] DRIVE SHIFT LEVER diagram
![Yamaha Motors YT1280EX (7BE2) [010] - DRIVE SHIFT LEVER](https://cdn.crowleymarine.com/yamaha/gPj6f1Zl.png)
1
Required: 1
LEVER, THROTTLE
Price unavailable
2
Required: 4
WASHER
Price unavailable
3
Yamaha Motors
BOLT (82G)97003-08040-00
Required: 1
BOLT
Supersedes: 97002-08040-00
$1.36
You save $0.24
$1.53
You save $-1.23
5
Yamaha Motors
Nut95302-08600-00
Required: 1
NUT, HEXAGON
$8.92
You save $1.57
6
Required: 2
WASHER, SPECIAL
Price unavailable
7
Required: 1
KNOB
Price unavailable
-50%
8
Yamaha Motors
Self-Locking Nut90185-06122-00
Required: 1
NUT, SELF-LOCKING
In stock
Only 3 remaining
$5.25
You save $5.25
9
Required: 1
BRACKET, STOPPER STEEERING
Price unavailable
10
Yamaha Motors
BOLT97012-06014-00
Required: 2
BOLT, HEXAGON
Supersedes: 97022-06014-00
$7.22
You save $1.27
11
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.76
You save $0.69
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-06600-00
In stock
5+ in stock
$2.28
You save $0.57
13
Required: 2
WASHER, SPECIAL 2
Price unavailable
14
Required: 1
LEVER, CONTROL 2
Price unavailable
15
Required: 1
KNOB
Price unavailable
16
Required: 1
JOINT 1
Price unavailable
17
Required: 1
WASHER, SPECIAL
Price unavailable
18
Required: 1
BUSH, FLANGE
Price unavailable
19
Required: 2
WASHER
Price unavailable
20
Yamaha Motors
BOLT91311-08060-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 91312-08060-00
$3.91
You save $0.69
21
Required: 1
WASHER 1
Price unavailable
22
Yamaha Motors
Nut95302-08600-00
Required: 2
NUT, HEXAGON
$8.92
You save $1.57
23
Required: 1
COLLAR 1
Price unavailable
24
Required: 1
JOINT, UNIVERSAL
Price unavailable
25
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
26
Yamaha Motors
Nut95302-08600-00
Required: 2
NUT, HEXAGON
$8.92
You save $1.57
27
Required: 1
ROD 1
Price unavailable
28
Required: 1
ROD 2
Price unavailable
29
Required: 1
LINK, SHIFT 1
Price unavailable
30
Required: 1
PIN, LINK
Price unavailable
$1.53
You save $-1.23
32
Yamaha Motors
Cotter Pin91490-20015-00
Required: 5
PIN, COTTER
Supersedes: 91401-20015-00
In stock
Only 2 remaining
$1.76
You save $0.44
33
Required: 1
ROD 3
Price unavailable
34
Required: 1
ROD 4
Price unavailable
35
Required: 1
ROD 5
Price unavailable
36
Required: 1
LINK, SHIFT 2
Price unavailable
37
Required: 1
NUT, ADJUST
Price unavailable
38
Yamaha Motors
Nut95302-08600-00
Required: 1
NUT, HEXAGON
$8.92
You save $1.57
39
Required: 1
NUT, LOCK
Price unavailable
$1.53
You save $-1.23
41
Yamaha Motors
Cotter Pin91490-20015-00
Required: 4
PIN, COTTER
Supersedes: 91401-20015-00
In stock
Only 2 remaining
$1.76
You save $0.44
42
Required: 1
ARM 1
Price unavailable
43
Required: 1
PIN
Price unavailable
44
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, COTTER
Supersedes: 91401-20015-00
In stock
Only 2 remaining
$1.76
You save $0.44
45
Required: 1
CABLE, THROTTLE 1
Price unavailable
$4.67
You save $0.82
47
Yamaha Motors
Pan Head Screw7CN-G1239-00-00
Required: 1
SCREW, PAN HEAD
Supersedes: 90157-03038-00
$0.51
You save $0.09
48
Required: 1
COVER, HANDLE LEVER 1
Price unavailable
49
Required: 1
GUIDE, CABLE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
