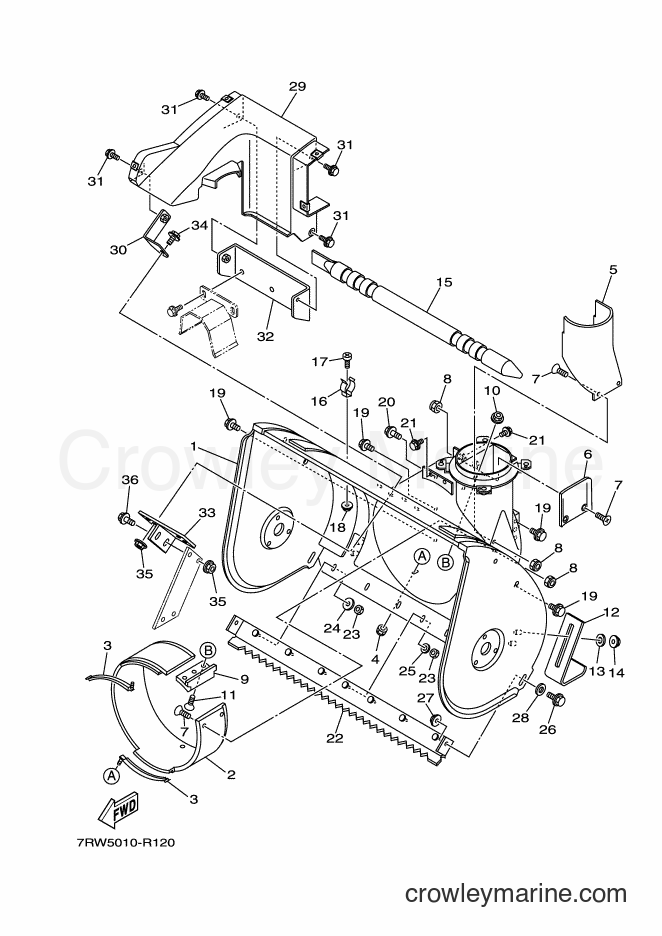

2016 Snowblower YT1070 - YT1070 (7RW5) [010] AUGA CASE diagram
![Yamaha Motors YT1070 (7RW5) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/pMASDUxf.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Required: 2
BRACKET 2
Price unavailable
4
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
5
Required: 1
DUCT, IMPELLER
Price unavailable
6
Required: 1
PLATE 1
Price unavailable
7
Required: 6
SCREW, SPECIAL
Price unavailable
8
Yamaha Motors
NUT95617-06100-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
9
Required: 1
BRACKET 1
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
11
Yamaha Motors
Flat Screw98704-06016-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-06016-00
$4.67
You save $0.82
12
Required: 2
SKID
Price unavailable
13
Required: 4
WASHER, SPECIAL 1
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
$29.74
You save $5.25
$14.02
You save $2.47
-50%
17
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
$0.81
You save $0.14
19
Yamaha Motors
95811-08012-0095812-08012-00
Required: 5
BOLT, FLANGE
Supersedes: 95822-08012-00
$1.32
You save $0.23
$0.61
You save $-0.31
21
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
22
Required: 1
SCRAPER
Price unavailable
23
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
24
Required: 6
WASHER, SPECIAL 2
Price unavailable
25
Required: 1
WASHER, SPECIAL 2
Price unavailable
$0.61
You save $-0.31
In stock
Only 2 remaining
$0.89
You save $0.16
28
Required: 2
WASHER, SPECIAL 1
Price unavailable
29
Required: 1
COVER 1
Price unavailable
30
Required: 1
BRACKET 3
Price unavailable
$5.09
You save $0.90
32
Required: 1
BRACKET 5
Price unavailable
33
Required: 1
BRACKET 1
Price unavailable
34
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
$0.61
You save $-0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
