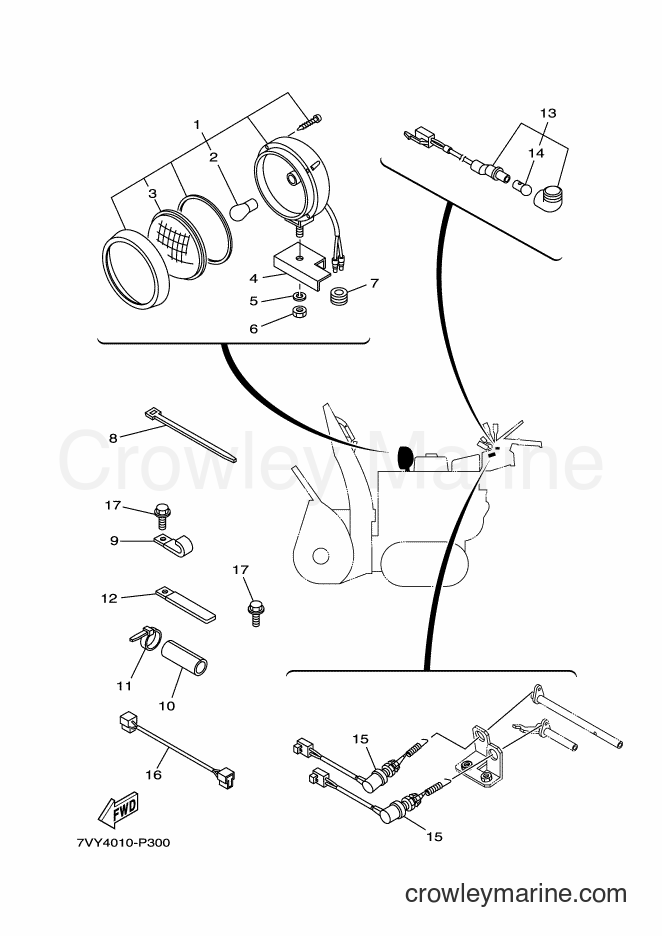

2016 Snowblower YS860 - YS860 (7VY5) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS860 (7VY5) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. BULB(12V-23W)
Price unavailable
3
Required: 1
. LENS, HEADLIGHT
Price unavailable
4
Required: 1
PLATE
Price unavailable
Spring Washer
5
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
6
Yamaha Motors
Nut95302-08600-00
Required: 2
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
7
Required: 1
GROMMET
Price unavailable
8
Required: 7
BAND
Price unavailable
9
Required: 1
CLAMP, WIRE
Price unavailable
10
Required: 1
COVER, CONNECTOR
Price unavailable
11
Required: 1
BAND
Price unavailable
12
Required: 2
CLAMP
Price unavailable
13
Required: 1
PILOT LIGHT ASSY
Price unavailable
123-83516-21-XX
14
Yamaha Motors
123-83516-21-XX123-83516-21-00
Required: 1
. BULB (12V-3.4W)
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
STOP SWITCH ASSY
15
Yamaha Motors
STOP SWITCH ASSY7VY-82530-00-00
Required: 2
STOP SWITCH ASSY
Supersedes: 4GB-82530-10-00
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
16
Required: 1
WIRE, SUB LEAD
Price unavailable
95814-08016-00
17
Yamaha Motors
95814-08016-0095821-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
