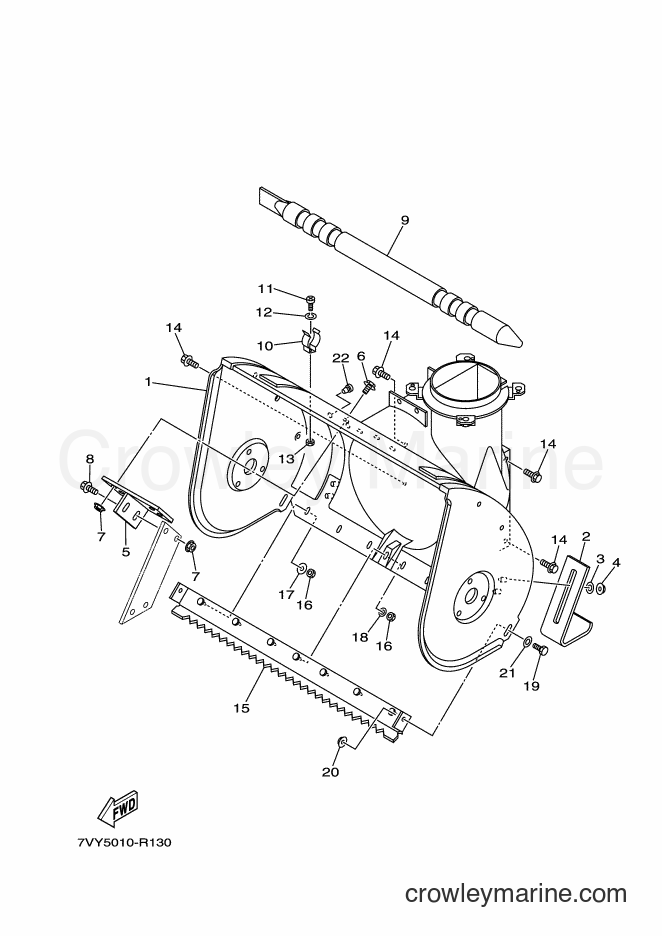

2016 Snowblower YS860 - YS860 (7VY5) [010] AUGA CASE diagram
![Yamaha Motors YS860 (7VY5) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/OsWEYQi7.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 2
SKID
Price unavailable
3
Required: 4
WASHER, SPECIAL 1
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
5
Required: 1
BRACKET 1
Price unavailable
6
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
$0.61
You save $-0.31
$29.74
You save $5.25
$14.02
You save $2.47
-50%
11
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
$0.81
You save $0.14
13
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
$0.61
You save $-0.31
15
Required: 1
SCRAPER
Price unavailable
16
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
17
Required: 6
WASHER, SPECIAL 2
Price unavailable
18
Required: 1
WASHER, SPECIAL 2
Price unavailable
$0.61
You save $-0.31
In stock
Only 2 remaining
$0.89
You save $0.16
21
Required: 2
WASHER, SPECIAL 1
Price unavailable
22
Yamaha Motors
Plug90338-07180-00
Required: 6
PLUG
Supersedes: 90338-06018-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
