2016 Snowblower YS1390AR - YS1390AR (7BB4) [010] CONTROL BOX diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

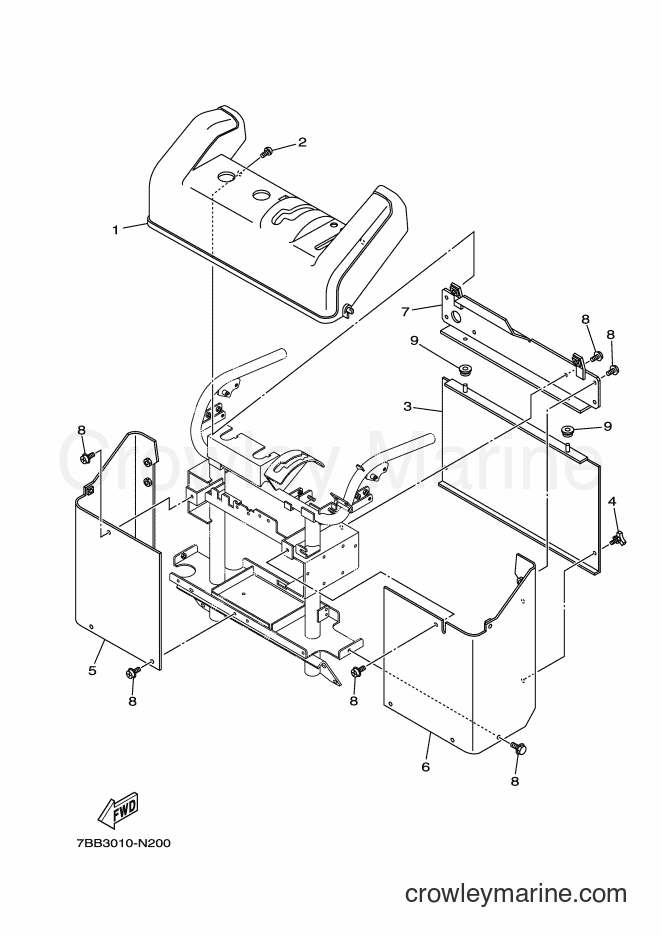

Yamaha Motors YS1390AR (7BB4) [010] - CONTROL BOX
Change View:
1
Required: 1
COVER, TOP
Price unavailable
Screw
2
Yamaha Motors
Screw90149-06263-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
PLATE 1
Price unavailable
4
Required: 2
KNOB, SIDE COVER 1
Price unavailable
5
Required: 1
COVER, HANDLE (R/H)
Price unavailable
6
Required: 1
COVER, HANDLE (L/H)
Price unavailable
7
Required: 1
PLATE COMP. ,1
Price unavailable
Grommet
9
Yamaha Motors
Grommet90480-13567-00
Required: 2
GROMMET
Supersedes: 90480-13426-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
