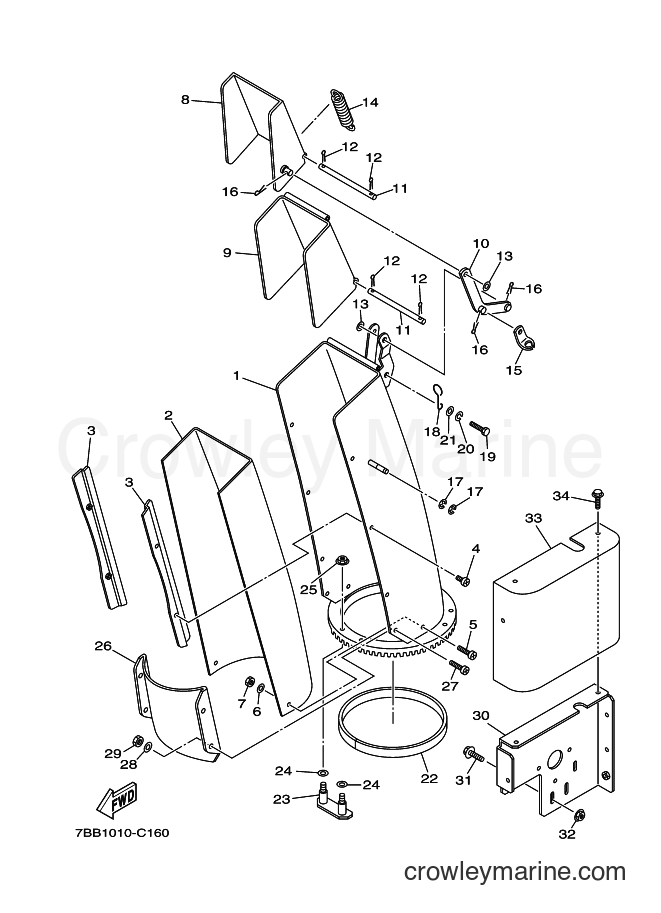

2016 Snowblower YS1390AR - YS1390AR (7BB4) [010] SCHUTE & SCHUTE CONTROL diagram
![Yamaha Motors YS1390AR (7BB4) [010] - SCHUTE & SCHUTE CONTROL](https://cdn.crowleymarine.com/yamaha/bipcp34H.png)
1
Required: 1
CHUTE COMP.
Price unavailable
2
Required: 1
CHUTE 1
Price unavailable
3
Required: 2
HOLDER, CHUTE
Price unavailable
4
Required: 4
SCREW, BIND
Price unavailable
5
Yamaha Motors
98904-06014-0098903-06014-00
Required: 2
SCREW, BIND
Supersedes: 98902-06014-00
$1.87
You save $0.33
6
Required: 2
WASHER, SPECIAL 2
Price unavailable
7
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$2.46
You save $0.44
8
Required: 1
DEFLECTOR
Price unavailable
9
Required: 1
DEFLECTOR 2
Price unavailable
10
Required: 1
ARM 1
Price unavailable
11
Required: 2
ROD, LINKAGE
Price unavailable
12
Yamaha Motors
Cotter Pin91490-20015-00
Required: 4
PIN, COTTER
Supersedes: 91401-20015-00
In stock
Only 2 remaining
$1.87
You save $0.33
13
Yamaha Motors
92990-10200-0092903-10200-00
Required: 2
WASHER
Supersedes: 92902-10200-00
$3.32
You save $0.58
14
Required: 1
SPRING, DEFLECTOR
Price unavailable
15
Required: 1
BRAKET, CABLE
Price unavailable
16
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 3
PIN, COTTER
Supersedes: 91401-30020-00
In stock
5+ in stock
$3.39
You save $0.60
In stock
5+ in stock
$0.94
You save $0.17
18
Required: 1
HOOK, WIRE
Price unavailable
19
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 1
BOLT, HEXAGON
Supersedes: 97002-06016-00
$1.57
You save $0.28
20
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.93
You save $0.52
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92902-06600-00
In stock
5+ in stock
$2.42
You save $0.43
22
Required: 1
BUSH, RING GEAR
Price unavailable
23
Required: 3
RETAINER
Price unavailable
24
Required: 6
SHIM
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
26
Required: 1
COVER 1
Price unavailable
27
Yamaha Motors
98904-06014-0098903-06014-00
Required: 4
SCREW, BIND
Supersedes: 98902-06014-00
$1.87
You save $0.33
28
Yamaha Motors
Plain Washer92990-06200-00
Required: 4
WASHER
Supersedes: 92902-06200-00
$0.85
You save $0.15
29
Yamaha Motors
NUT95617-06100-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$2.46
You save $0.44
30
Required: 1
STAY, STARTING MOTOR
Price unavailable
31
Yamaha Motors
Flange Bolt95817-06012-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
In stock
Only 1 remaining
$2.21
You save $0.39
33
Required: 1
COVER 1
Price unavailable
34
Yamaha Motors
Flange Bolt95817-06012-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
