2016 Snowblower YS1390A - YS1390A (7BB3) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

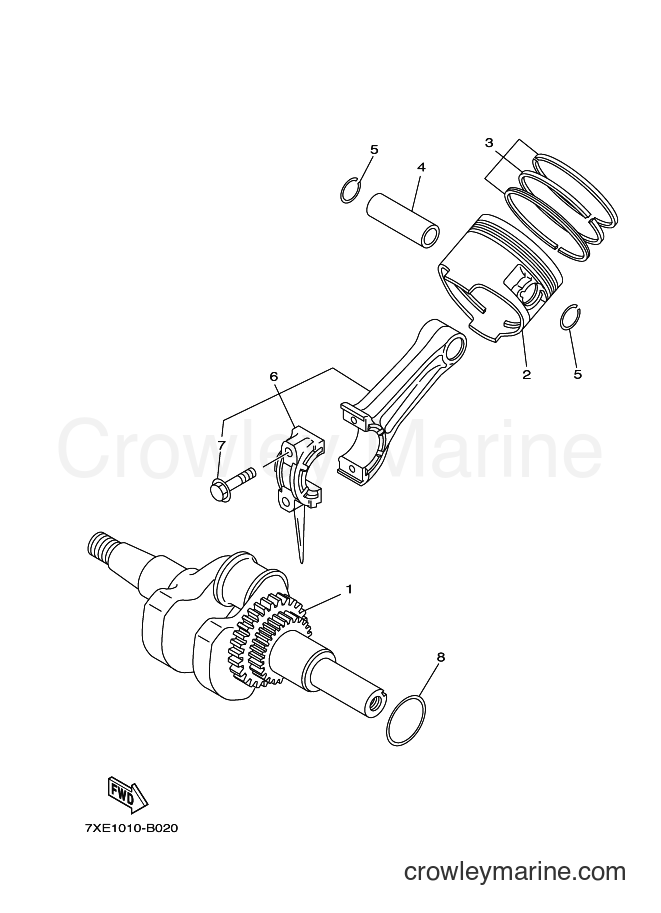

Yamaha Motors YS1390A (7BB3) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
PISTON (0.50MM O/S)
Price unavailable
2
Required: 1
PISTON (STD)
Price unavailable
2
Required: 1
PISTON (0.25MM O/S)
Price unavailable
3
Required: 1
PISTON RING SET (STD)
Price unavailable
3
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
3
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
Piston Pin
4
Yamaha Motors
Piston Pin7CT-E1633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Connecting Rod Bolt
7
Yamaha Motors
Connecting Rod Bolt7CT-E1654-00-00
Required: 2
. BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
Crank Shim
8
Yamaha Motors
Crank Shim7CT-E1561-00-00
Required: 1
SHIM, CRANK 1
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
