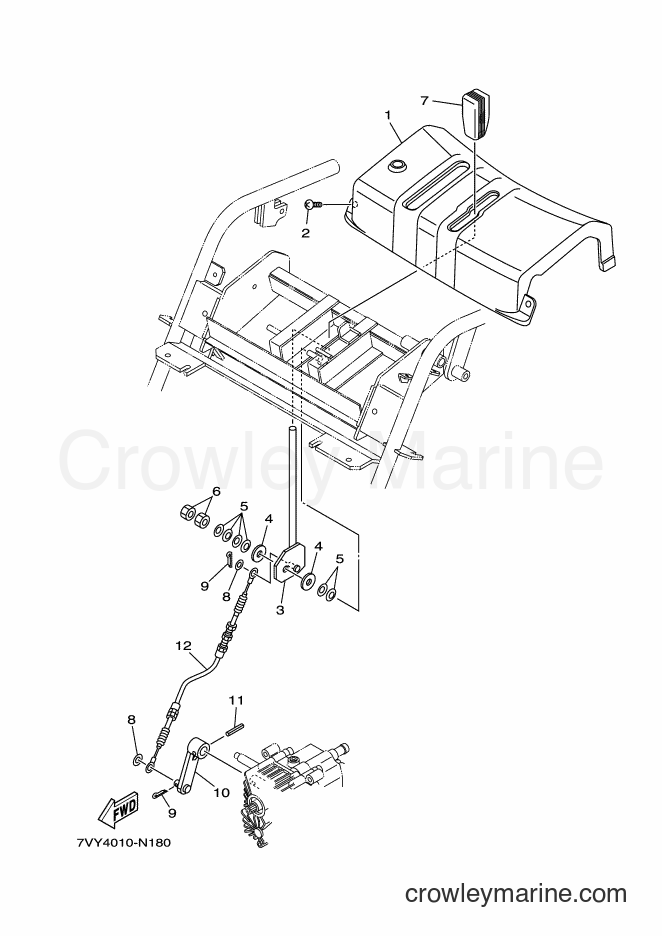

2016 Snowblower YS1070J - YS1070J (7VY4) [010] CONTROL BOX diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS1070J (7VY4) [010] - CONTROL BOX
Change View:
1
Required: 1
COVER, TOP
Price unavailable
Screw
2
Yamaha Motors
Screw90149-06263-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
LEVER, CONTROL 2
Price unavailable
4
Required: 2
WASHER, SPECIAL 3
Price unavailable
5
Required: 6
WASHER, CONICAL SPRING
Price unavailable
Nut
6
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-10600-00
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
7
Required: 1
KNOB
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
9
Required: 2
PIN, COTTER
Price unavailable
10
Required: 1
ARM, CONTROL
Price unavailable
SPRING PIN
11
Yamaha Motors
SPRING PIN91690-40025-00
Required: 1
PIN, SPRING
Supersedes: 91609-40025-00
Cross Ship
Leaves in 2-5 days
$0.65
$0.55
You save $0.10
More details
12
Required: 1
WIRE, SHIFT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
