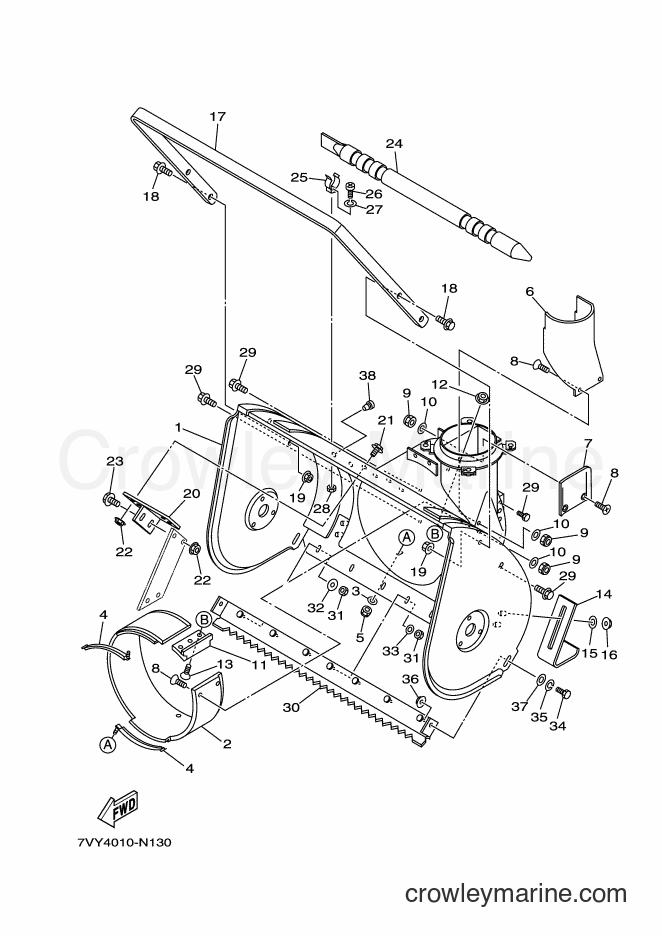

2016 Snowblower YS1070J - YS1070J (7VY4) [010] AUGA CASE diagram
![Yamaha Motors YS1070J (7VY4) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/1HcGe5We.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
$3.60
You save $-2.60
4
Required: 2
BRACKET 2
Price unavailable
5
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
6
Required: 1
DUCT, IMPELLER
Price unavailable
7
Required: 1
PLATE 1
Price unavailable
8
Required: 6
SCREW, SPECIAL
Price unavailable
9
Yamaha Motors
NUT95617-06100-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
10
Yamaha Motors
Plain Washer92990-06200-00
Required: 6
WASHER
Supersedes: 92902-06200-00
$3.60
You save $-2.60
11
Required: 1
BRACKET 1
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
13
Yamaha Motors
Flat Screw98704-06016-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-06016-00
$4.67
You save $0.82
14
Required: 2
SKID
Price unavailable
15
Required: 4
WASHER, SPECIAL 1
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
17
Required: 1
SIDE MARKER
Price unavailable
$0.61
You save $-0.31
In stock
Only 2 remaining
$0.89
You save $0.16
20
Required: 1
BRACKET 1
Price unavailable
21
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
$0.61
You save $-0.31
$29.74
You save $5.25
$14.02
You save $2.47
-50%
26
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
-50%
27
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$0.77
You save $0.77
28
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
$0.61
You save $-0.31
30
Required: 1
SCRAPER
Price unavailable
31
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
32
Required: 6
WASHER, SPECIAL 2
Price unavailable
33
Required: 1
WASHER, SPECIAL 2
Price unavailable
$1.45
You save $0.26
35
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
In stock
Only 2 remaining
$0.89
You save $0.16
37
Required: 2
WASHER, SPECIAL 1
Price unavailable
38
Yamaha Motors
Plug90338-07180-00
Required: 6
PLUG
Supersedes: 90338-06018-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
