2017 Snowblower B70 - B70 (7XE9) [010] BLADE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

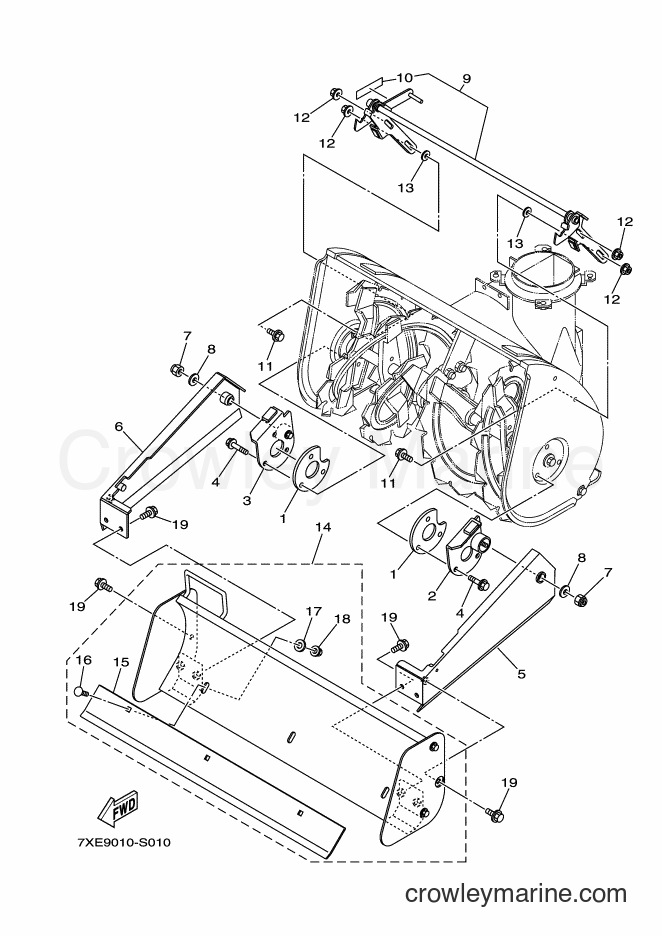

Yamaha Motors B70 (7XE9) [010] - BLADE
Change View:
1
Required: 2
PLATE, SPACER
Price unavailable
2
Required: 1
BRACKET, PIVOT LH.
Price unavailable
3
Required: 1
BRACKET, PIVOT RH.
Price unavailable
5
Required: 1
FRAME 1
Price unavailable
6
Required: 1
FRAME 2
Price unavailable
NUT
7
Yamaha Motors
NUT95617-08100-00
Required: 2
NUT, U
Supersedes: 95602-08100-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
WASHER
8
Yamaha Motors
WASHER92902-08200-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$1.53
You save $-1.23
More details
9
Required: 1
HEIGHT, ADJUST LEVER
Price unavailable
10
Required: 1
. LABEL, CAUTION
Price unavailable
95814-08016-00
11
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
WASHER
13
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$1.53
You save $-1.23
More details
14
Required: 1
FRONT BLADE SUB-ASSY.
Price unavailable
15
Required: 1
. SCRAPER
Price unavailable
16
Required: 3
. BOLT, SPECIAL 1
Price unavailable
92990-10200-00
17
Yamaha Motors
92990-10200-0092903-10200-00
Required: 3
. WASHER
Supersedes: 92902-10200-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
95814-08016-00
19
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
