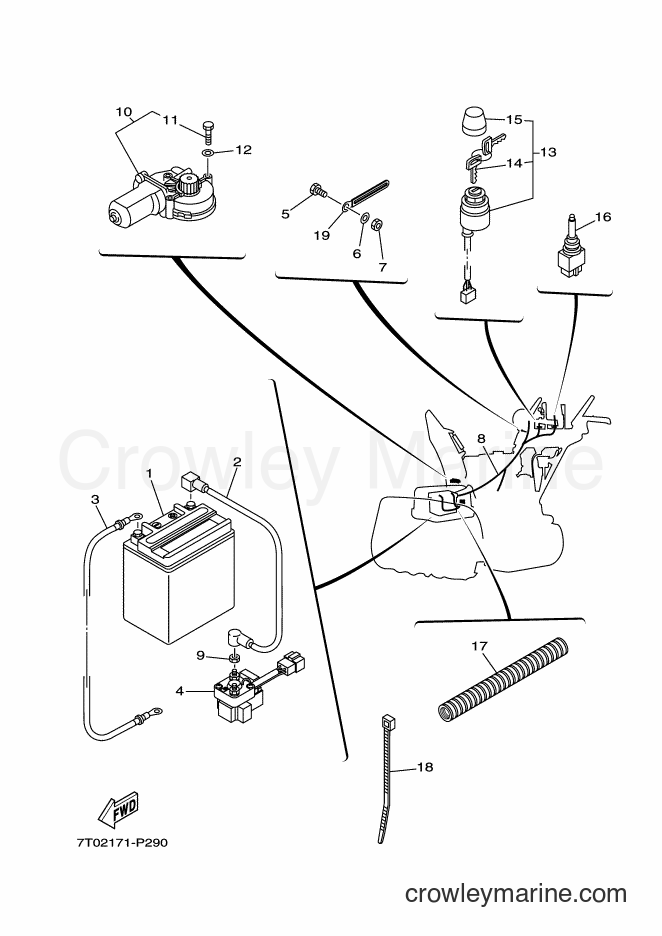

2015 Snowblower YT660 - YT660 (7T02) [010] ELECTRICAL 1 diagram
![Yamaha Motors YT660 (7T02) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/60fBXZaB.png)
2
Required: 1
WIRE, PLUS LEAD
Price unavailable
3
Required: 1
WIRE, MINUS LEAD
Price unavailable
4
Required: 1
STARTER RELAY ASSY
Price unavailable
5
Required: 1
BOLT
Price unavailable
-50%
6
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.50
You save $2.50
7
Yamaha Motors
Nut95380-05600-00
Required: 1
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
8
Required: 1
WIRE HARNESS ASSY
Price unavailable
9
Yamaha Motors
95303-06700-0095301-06700-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-06700-00
$2.21
You save $0.39
10
Required: 1
MOTOR ASSY
Price unavailable
11
Required: 3
. BOLT, SPECIAL
Price unavailable
-50%
12
Yamaha Motors
Plain Washer92990-05200-00
Required: 3
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.50
You save $2.50
13
Required: 1
MAIN SWITCH ASSY
Price unavailable
14
Required: 2
. KEY, MAIN SWITCH
Price unavailable
15
Required: 1
. CAP, KEY
Price unavailable
16
Required: 1
SWITCH
Price unavailable
17
Required: 1
TUBE
Price unavailable
18
Required: 5
BAND
Price unavailable
$3.06
You save $0.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
