2015 Snowblower YT1070 - YT1070 (7RW4) [010] CONTROL BOX diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

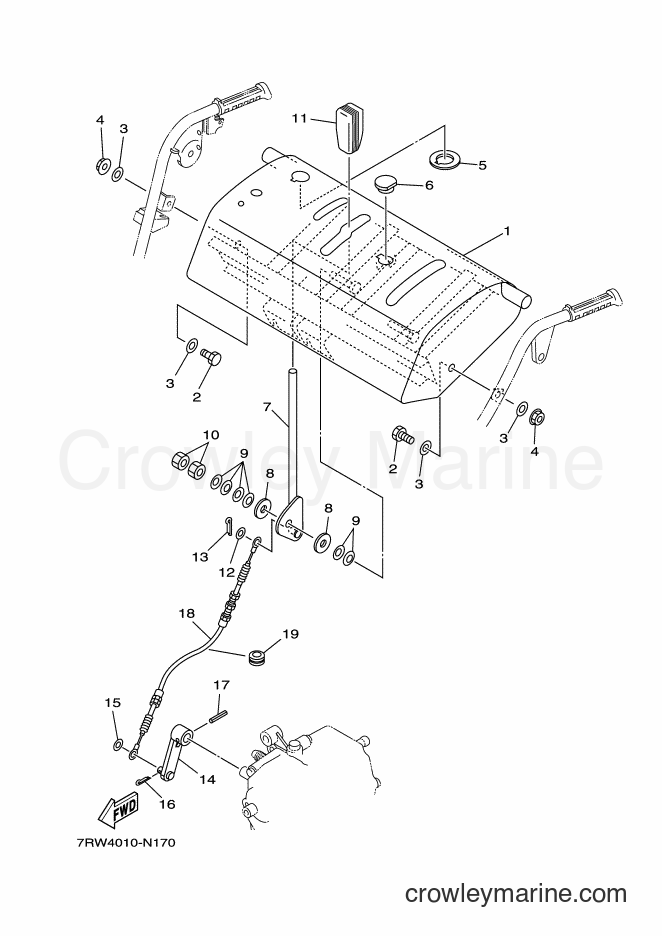

Yamaha Motors YT1070 (7RW4) [010] - CONTROL BOX
Change View:
1
Required: 1
REMOTE CONTROL BOX COMP.
Price unavailable
97313-08020-00
2
Yamaha Motors
97313-08020-0097022-08020-00
Required: 2
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$1.71
$1.45
You save $0.26
More details
WASHER
3
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$1.53
You save $-1.23
More details
5
Required: 1
WASHER, SEAT
Price unavailable
Plug
6
Yamaha Motors
Plug90338-20183-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
7
Required: 1
LEVER, CONTROL 2
Price unavailable
8
Required: 2
WASHER, SPECIAL 3
Price unavailable
9
Required: 6
WASHER, CONICAL SPRING
Price unavailable
Nut
10
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-10600-00
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
11
Required: 1
KNOB
Price unavailable
Plain Washer
12
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$3.60
You save $-2.60
More details
13
Required: 1
PIN, COTTER
Price unavailable
14
Required: 1
ARM, CONTROL
Price unavailable
Plain Washer
15
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$3.60
You save $-2.60
More details
16
Required: 1
PIN, COTTER
Price unavailable
SPRING PIN
17
Yamaha Motors
SPRING PIN91690-40025-00
Required: 1
PIN, SPRING
Supersedes: 91609-40025-00
Cross Ship
Leaves in 2-5 days
$0.65
$1.66
You save $-1.01
More details
18
Required: 1
WIRE, SHIFT
Price unavailable
19
Required: 1
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
