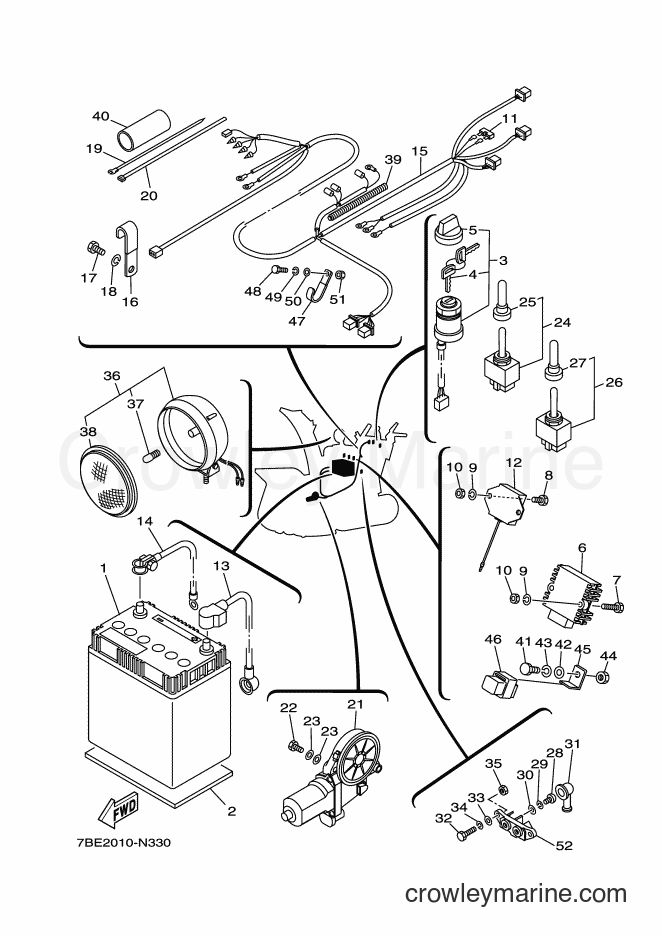

2014 Snowblower YT1280EX - YT1280EX (7BE2) [010] ELECTRICAL 1 diagram
![Yamaha Motors YT1280EX (7BE2) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/AYhFpXnV.png)
2
Required: 1
SEAT, BATTERY
Price unavailable
3
Yamaha Motors
Obsolete Yamaha Part7MN-82510-00-00
Required: 1
MAIN SWITCH ASSY
$48.44
You save $8.55
4
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
$12.32
You save $2.17
$32.29
You save $5.70
6
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
7
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97002-06025-00
$3.87
You save $0.68
$1.70
You save $0.30
9
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.76
You save $0.69
10
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 3
NUT, HEXAGON
Supersedes: 95302-06600-00
In stock
5+ in stock
$3.84
You save $0.96
$7.22
You save $1.27
12
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
$66.29
You save $11.70
13
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Required: 1
WIRE, MINUS LEAD
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 7
CLAMP, WIRE
Price unavailable
$2.25
You save $0.40
18
Yamaha Motors
Spring Washer92907-08100-00
Required: 3
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
19
Required: 5
BAND
Price unavailable
20
Required: 7
BAND
Price unavailable
21
Required: 1
MOTOR ASSY
Price unavailable
22
Required: 3
BOLT, SPECIAL
Price unavailable
-50%
23
Yamaha Motors
Plain Washer92990-05200-00
Required: 6
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.50
You save $2.50
$62.04
You save $10.95
25
Required: 1
. COVER, SWITCH
Price unavailable
26
Required: 1
SWITCH
Price unavailable
27
Required: 1
. COVER, SWITCH
Price unavailable
28
Yamaha Motors
Screw97885-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
29
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
30
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
31
Required: 2
COVER, LEAD WIRE
Price unavailable
32
Required: 2
BOLT
Price unavailable
-50%
33
Yamaha Motors
Plain Washer92990-05200-00
Required: 2
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.50
You save $2.50
-50%
34
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$0.77
You save $0.77
35
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
36
Required: 1
HEADLIGHT ASSY
Price unavailable
37
Required: 1
. BULB(12V-23W)
Price unavailable
38
Required: 1
. LENS, HEADLIGHT
Price unavailable
39
Required: 1
TUBE
Price unavailable
40
Required: 1
COVER, CONNECTOR
Price unavailable
$1.70
You save $0.30
42
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER
Supersedes: 92902-06200-00
$3.60
You save $-2.60
43
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.76
You save $0.69
44
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
NUT, HEXAGON
Supersedes: 95302-06600-00
In stock
5+ in stock
$3.84
You save $0.96
45
Required: 1
STAY, RELAY
Price unavailable
46
Yamaha Motors
Starter Relay25G-81950-02-00
Required: 1
RELAY ASSY (25G-01)
Supersedes: 25G-81950-01-00
$44.19
You save $7.80
47
Required: 3
CLAMP, WIRE
Price unavailable
48
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 1
BOLT, HEXAGON
Supersedes: 97002-06016-00
$1.57
You save $0.28
49
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
$3.60
You save $-2.60
50
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.76
You save $0.69
51
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-06600-00
In stock
5+ in stock
$3.84
You save $0.96
52
Yamaha Motors
Terminal Sub Assembly7NJ-87220-00-00
Required: 1
TERMINAL SUB ASSY 1
$19.54
You save $3.45
