All diagrams for this model

2014 Snowblower YT1280ED - YT1280ED (7BE1) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

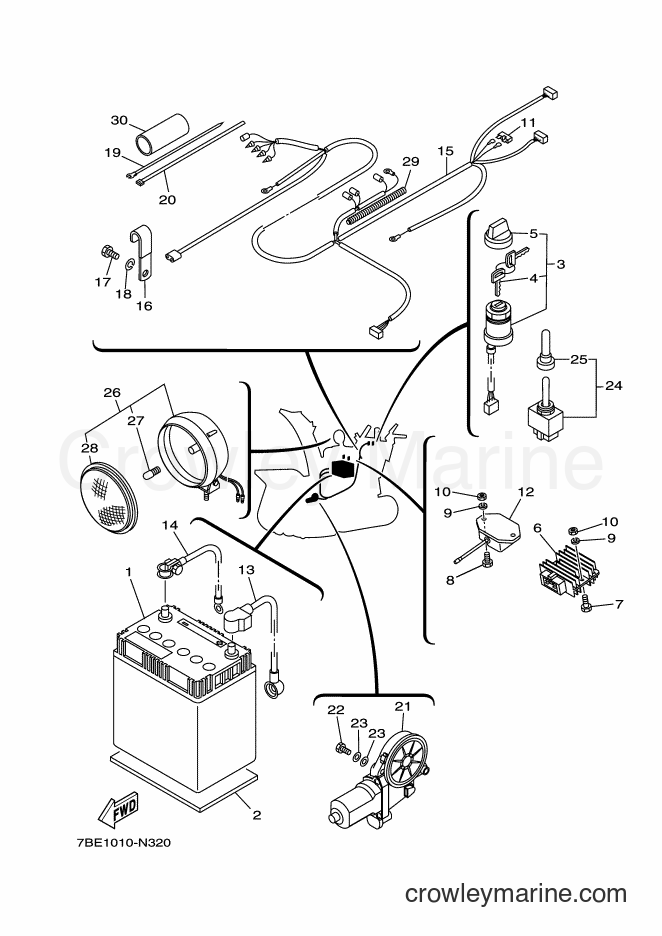

Yamaha Motors YT1280ED (7BE1) [010] - ELECTRICAL 1
Change View:
2
Required: 1
SEAT, BATTERY
Price unavailable
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part7MN-82510-00-00
Required: 1
MAIN SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$56.99
$48.44
You save $8.55
More details
Main Switch Key
4
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
KEY CAP
5
Yamaha Motors
KEY CAP24W-82579-00-00
Required: 1
. CAP, KEY
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
6
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
Bolt
7
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97002-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
97013-06012-00
8
Yamaha Motors
97013-06012-0097003-06012-00
Required: 2
BOLT
Supersedes: 97002-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Fuse (30A-Bl)
11
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 1
FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Voltage Regulator Assembly
12
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
Cross Ship
Leaves in 2-5 days
$77.99
$66.29
You save $11.70
More details
13
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Required: 1
WIRE, MINUS LEAD
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 7
CLAMP, WIRE
Price unavailable
97011-08016-00
17
Yamaha Motors
97011-08016-0097022-08016-00
Required: 3
BOLT
Supersedes: 97002-08016-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Spring Washer
18
Yamaha Motors
Spring Washer92907-08100-00
Required: 3
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 5
BAND
Price unavailable
20
Required: 4
BAND
Price unavailable
21
Required: 1
MOTOR ASSY
Price unavailable
BOLT
22
Yamaha Motors
BOLT90101-05704-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$1.77
$1.50
You save $0.27
More details
Obsolete Yamaha Part
24
Yamaha Motors
Obsolete Yamaha Part7LY-82917-02-00
Required: 1
SWITCH
Cross Ship
Leaves in 2-5 days
$72.99
$62.04
You save $10.95
More details
25
Required: 1
. COVER, SWITCH
Price unavailable
26
Required: 1
HEADLIGHT ASSY
Price unavailable
27
Required: 1
. BULB(12V-23W)
Price unavailable
28
Required: 1
. LENS, HEADLIGHT
Price unavailable
29
Required: 1
TUBE
Price unavailable
30
Required: 1
COVER, CONNECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
