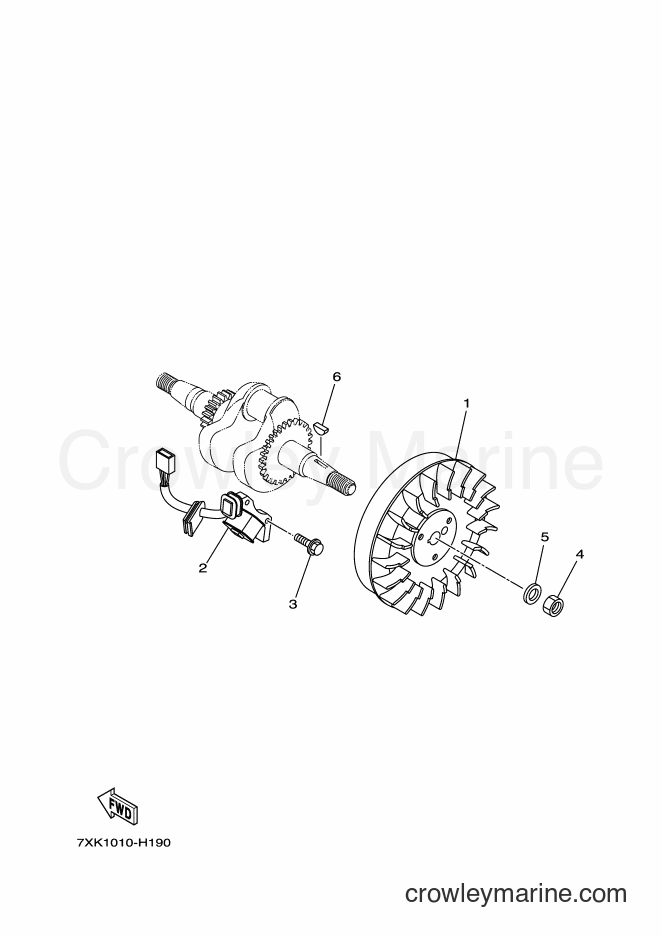

2013 Snowblower YU240 - YU240 (7XK1) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YU240 (7XK1) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
Coil Assembly
2
Yamaha Motors
Coil Assembly7DX-H5521-10-00
Required: 1
COIL ASSY
Supersedes: 7DX-H5521-00-00
Cross Ship
Leaves in 2-5 days
$30.99
$26.34
You save $4.65
More details
Nut
4
Yamaha Motors
Nut95317-12700-00
Required: 1
NUT
Supersedes: 95307-12700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
5
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER, PLATE
Supersedes: 92902-12600-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Woodruff Key
6
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-03045-00
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
