All diagrams for this model

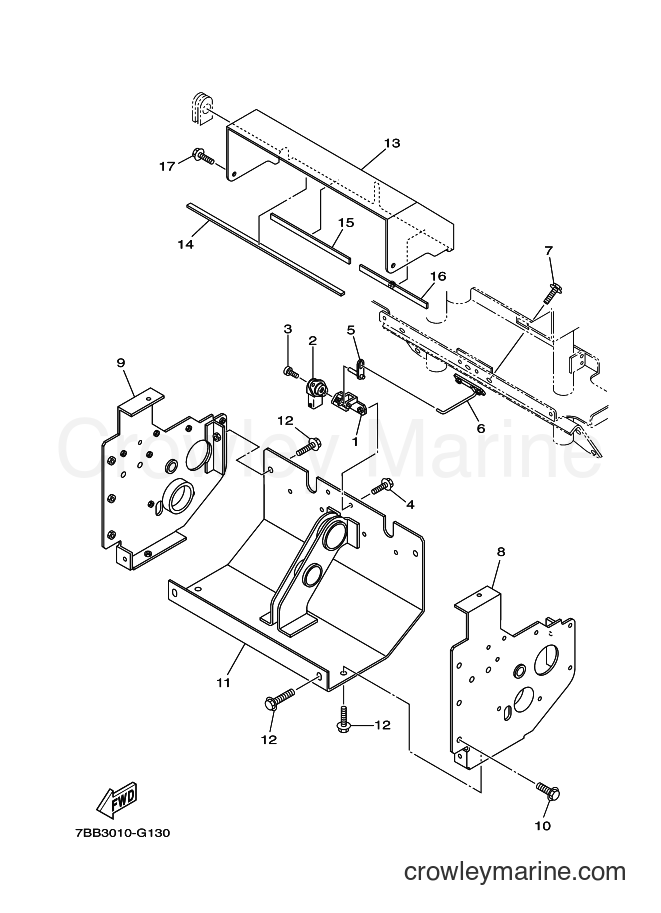

2013 Snowblower YS1390AR - YS1390AR (7BB4) [010] FRAME 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS1390AR (7BB4) [010] - FRAME 2
Change View:
1
Required: 1
STAY 1
Price unavailable
2
Required: 1
SENSOR ANGLE
Price unavailable
3
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
5
Required: 1
LEVER 1
Price unavailable
6
Required: 1
LEVER 2
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt95822-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.10
$0.08
You save $0.01
More details
8
Required: 1
RR. FRAME
Price unavailable
9
Required: 1
RR. FRAME
Price unavailable
Flange Bolt (3HP)
10
Yamaha Motors
Flange Bolt (3HP)95817-10016-00
Required: 12
BOLT, FLANGE
Supersedes: 95822-10016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
FRAME UNDER 1
Price unavailable
95814-08016-00
12
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
13
Required: 1
COVER, LINK
Price unavailable
14
Required: 1
DAMPER
Price unavailable
15
Required: 1
DAMPER 2
Price unavailable
16
Required: 1
DAMPER 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
