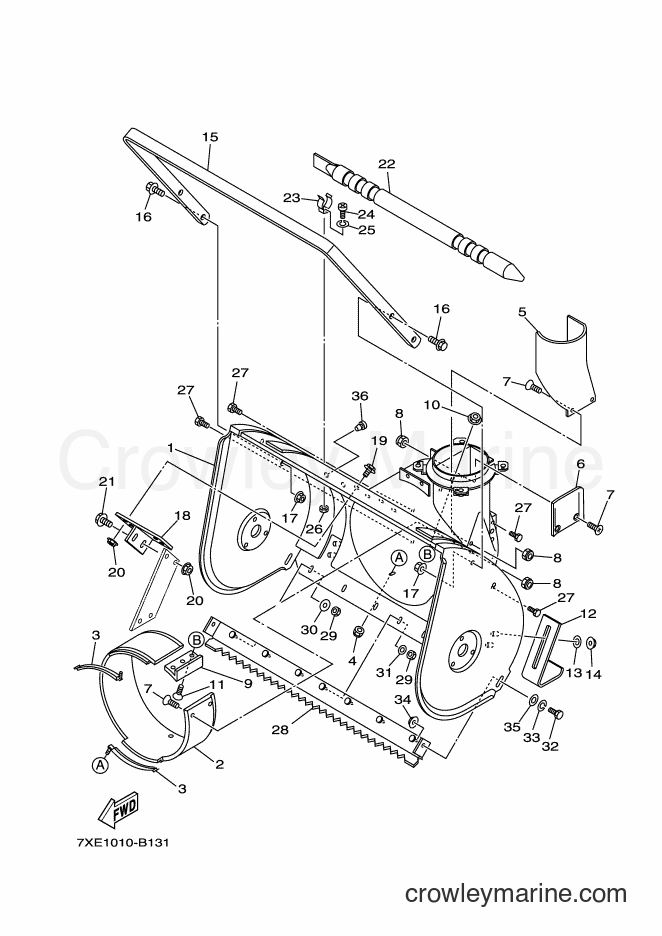

2012 Snowblower YS1070 - YS1070 (7XE3) [010] AUGA CASE diagram
![Yamaha Motors YS1070 (7XE3) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/8qxh9Mhc.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Required: 2
BRACKET 2
Price unavailable
4
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.89
You save $0.06
5
Required: 1
DUCT, IMPELLER
Price unavailable
6
Required: 1
PLATE 1
Price unavailable
7
Yamaha Motors
Flat Screw98707-06014-00
Required: 6
SCREW, FLAT HEAD
Supersedes: 98702-06014-00
$8.07
You save $1.42
8
Yamaha Motors
U Flange Nut95604-06200-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.89
You save $0.06
9
Required: 1
BRACKET 1
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
11
Yamaha Motors
Flat Screw98704-06016-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-06016-00
$4.67
You save $0.82
12
Required: 2
SKID
Price unavailable
13
Required: 4
WASHER, SPECIAL 1
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
15
Required: 1
SIDE MARKER
Price unavailable
$0.61
You save $-0.31
In stock
Only 2 remaining
$0.89
You save $0.16
18
Required: 1
BRACKET 1
Price unavailable
19
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
In stock
Only 2 remaining
$0.89
You save $0.16
$0.61
You save $-0.31
$29.74
You save $5.25
$14.02
You save $2.47
-50%
24
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
-50%
25
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$0.77
You save $0.77
26
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$7.59
You save $1.90
$0.61
You save $-0.31
28
Required: 1
SCRAPER
Price unavailable
29
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
You save $-0.70
30
Required: 6
WASHER, SPECIAL 2
Price unavailable
31
Required: 1
WASHER, SPECIAL 2
Price unavailable
$1.45
You save $0.26
33
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
In stock
Only 2 remaining
$0.89
You save $0.16
35
Required: 2
WASHER, SPECIAL 1
Price unavailable
36
Yamaha Motors
Plug90338-07180-00
Required: 2
PLUG
Supersedes: 90338-06018-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
