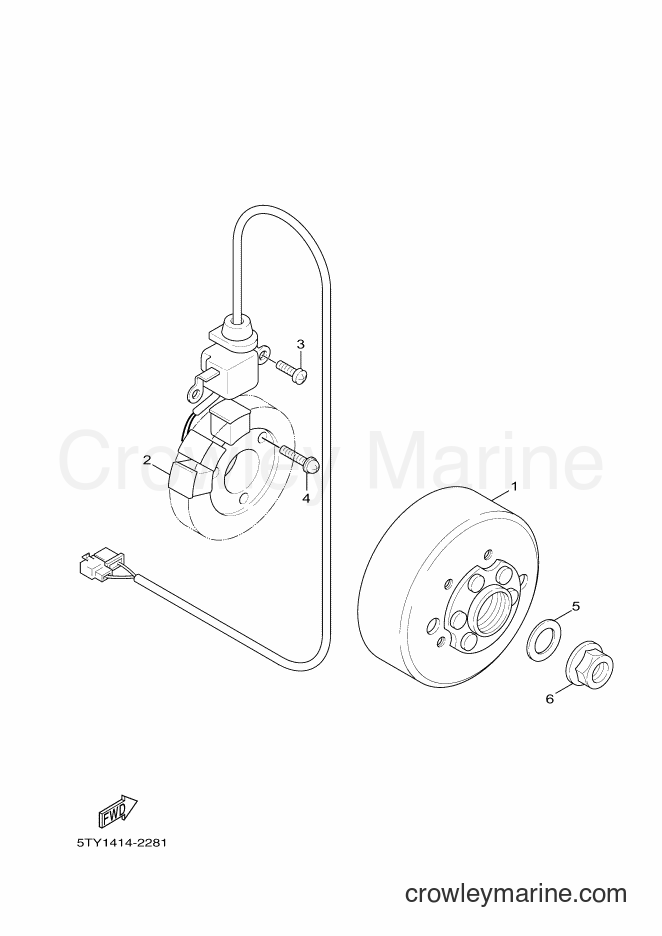

2018 Scooter YW125 - YW125 (BC96) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YW125 (BC96) [010] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly2EB-H1450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$56.99
$48.44
You save $8.55
More details
2
Required: 1
STATOR ASSY
Price unavailable
PAN HEAD SCREW
4
Yamaha Motors
PAN HEAD SCREW97607-06225-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plate Washer
5
Yamaha Motors
Plate Washer90201-124E4-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12688-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Nut
6
Yamaha Motors
Nut90179-12004-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
