2018 Scooter YP400RA - YP400RA (BL11) [020] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

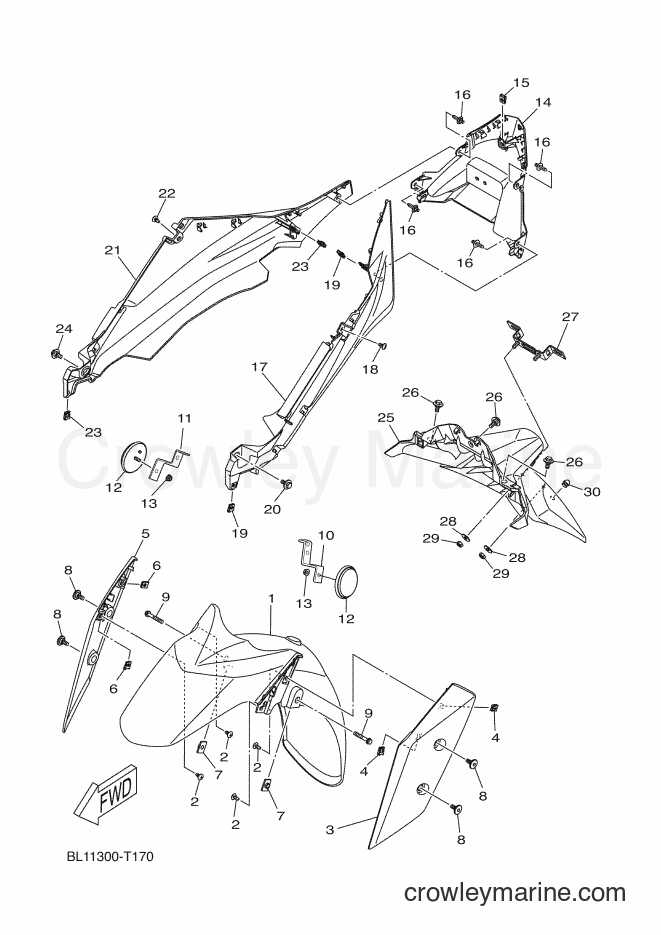

Yamaha Motors YP400RA (BL11) [020] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 4
SCREW, TAPPING
Price unavailable
3
Required: 1
STAY, FENDER 1
Price unavailable
5
Required: 1
STAY, FENDER 2
Price unavailable
Nut
7
Yamaha Motors
Nut90179-06055-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
BOLT
8
Yamaha Motors
BOLT90109-068A4-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
Small Bolt Flange
9
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
10
Required: 1
BRACKET, REFLECTOR 1
Price unavailable
11
Required: 1
BRACKET, REFLECTOR 2
Price unavailable
12
Required: 2
REFLECTOR, FRONT 1
Price unavailable
Flange Nut
13
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Rear Fender Cover
14
Yamaha Motors
Rear Fender CoverB74-F1651-00-00
Required: 1
COVER, REAR FENDER
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
RIVET
16
Yamaha Motors
RIVET90269-06001-00
Required: 4
RIVET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Panel
17
Yamaha Motors
PanelB74-F172A-00-00
Required: 1
PANEL 1
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
18
Required: 1
SCREW, TAPPING
Price unavailable
20
Required: 1
BOLT
Price unavailable
Panel
21
Yamaha Motors
PanelB74-F172F-00-00
Required: 1
PANEL 2
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
22
Required: 1
SCREW, TAPPING
Price unavailable
24
Required: 1
BOLT
Price unavailable
25
Required: 1
FENDER, REAR
Price unavailable
26
Required: 3
BOLT
Price unavailable
27
Required: 1
LICENCE BRACKET ASSY
Price unavailable
Plain Washer
28
Yamaha Motors
Plain Washer90201-06088-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT
29
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, S/L
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
Plug
30
Yamaha Motors
Plug90338-07018-00
Required: 1
DAMPER 2
Supersedes: 4G0-21639-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
