All diagrams for this model

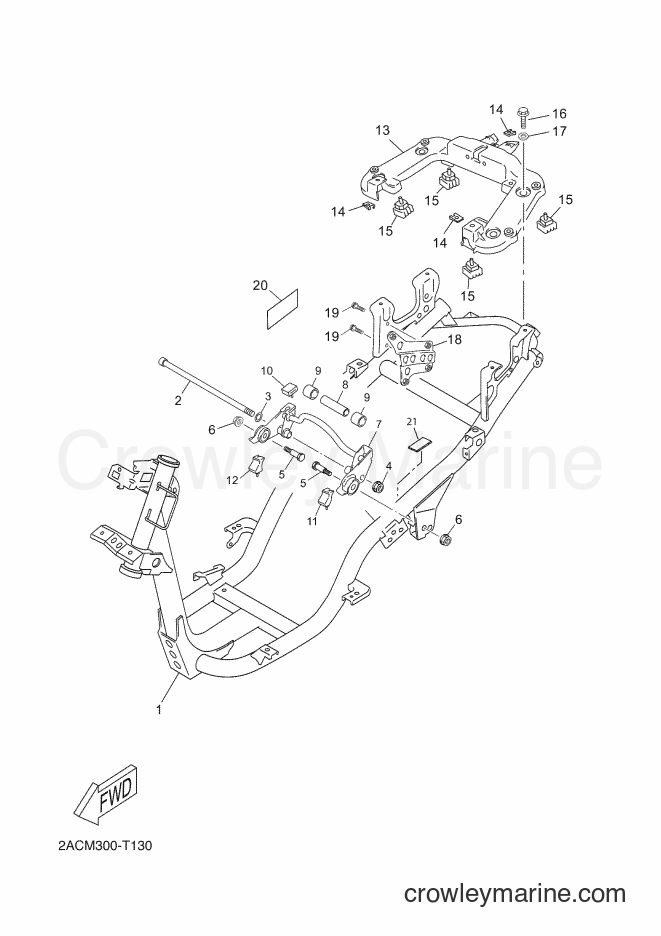

2018 Scooter YN50F - YN50F (2ACM) [040] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50F (2ACM) [040] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BOLT, ENGINE MOUNTING 1
Price unavailable
3
Required: 1
WASHER
Price unavailable
Self-Locking Nut
4
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 2
BOLT
Price unavailable
Self-Locking Nut
6
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
ENGINE BRACKET COMP.
Price unavailable
8
Required: 1
SPACER
Price unavailable
9
Required: 2
COVER, DUST
Price unavailable
10
Required: 1
DAMPER, STOPPER
Price unavailable
11
Required: 1
DAMPER
Price unavailable
12
Required: 1
DAMPER 2
Price unavailable
13
Required: 1
REINFORCEMENT, TAIL
Price unavailable
Spring Nut
14
Yamaha Motors
Spring Nut90183-06X00-00
Required: 3
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
15
Required: 4
DAMPER, RUBBER 1
Price unavailable
16
Required: 4
BOLT
Price unavailable
17
Required: 4
WASHER, PLATE
Price unavailable
18
Required: 1
BRACKET, C.D.I. UNIT
Price unavailable
Flange Nut
19
Yamaha Motors
Flange Nut95707-06500-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
20
Required: 1
DAMPER, PLATE
Price unavailable
21
Required: 1
DAMPER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
