2018 Scooter YN50F - YN50F (2ACM) [040] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

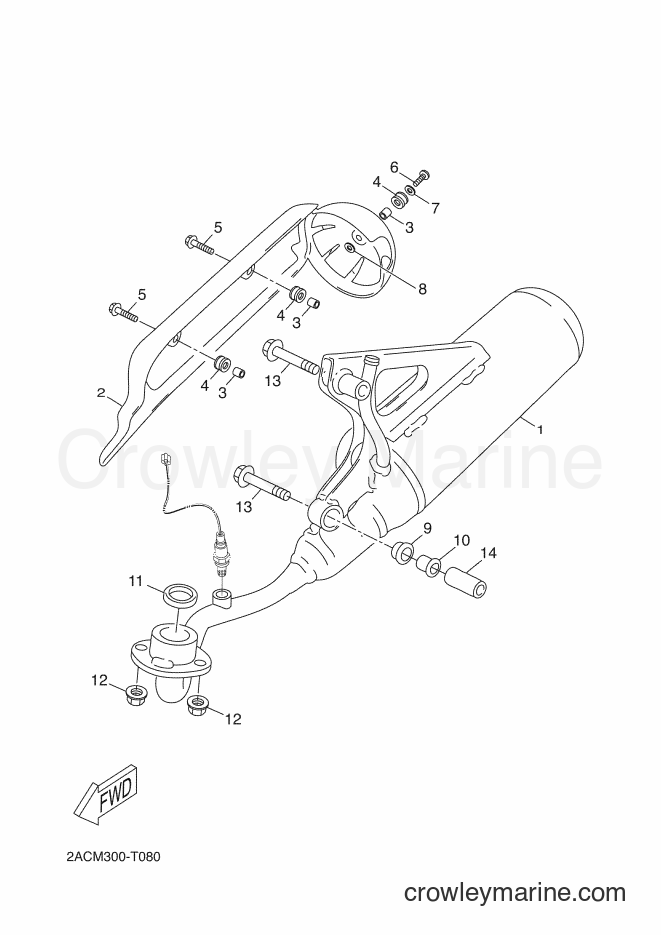

Yamaha Motors YN50F (2ACM) [040] - EXHAUST
Change View:
1
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
2
Required: 1
PROTECTOR ASSY
Price unavailable
3
Required: 3
COLLAR
Price unavailable
4
Required: 3
GROMMET
Price unavailable
BOLT
5
Yamaha Motors
BOLT90111-06015-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
Plain Washer
7
Yamaha Motors
Plain Washer90201-06078-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Washer Plate (Scorpion)
8
Yamaha Motors
Washer Plate (Scorpion)90201-05022-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$33.99
$28.89
You save $5.10
More details
9
Required: 1
GROMMET
Price unavailable
10
Required: 1
COLLAR
Price unavailable
PI EXHAUST GASKET
11
Yamaha Motors
PI EXHAUST GASKET1P4-E4613-00-00
Required: 1
GASKET, EXHAUST PIPE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Self Locking Nut
12
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 2
BOLT, FLANGE
Price unavailable
14
Required: 1
COLLAR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
