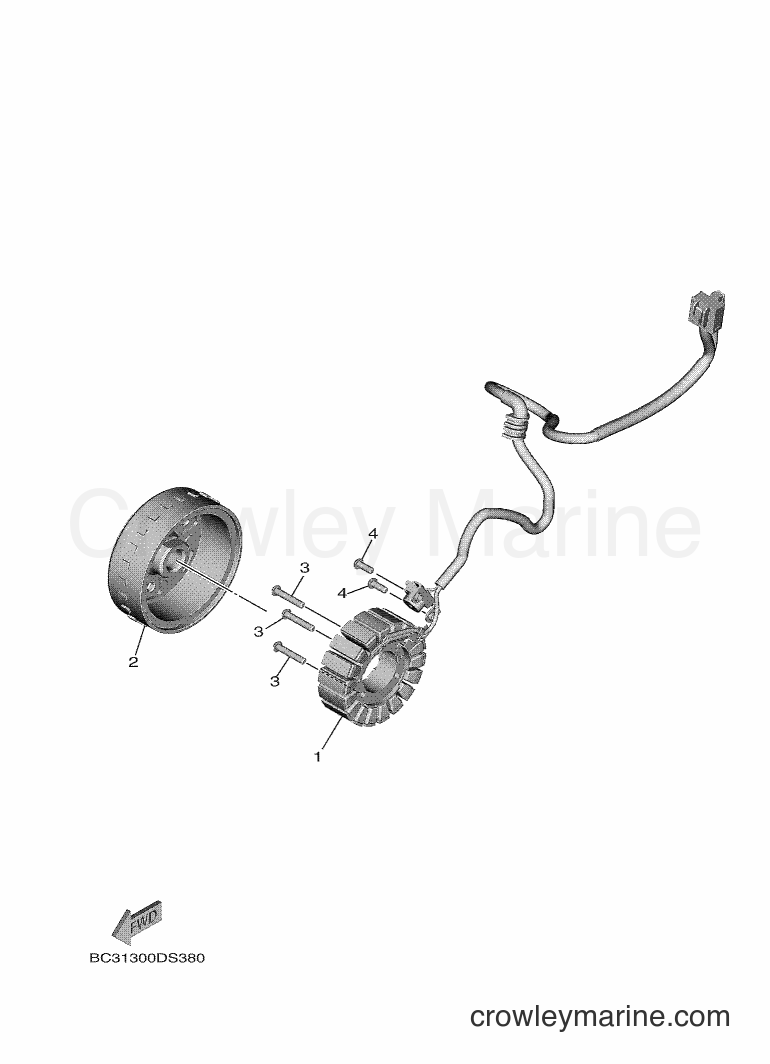

2018 Maxi-Scooter XP530E-A - XP530E-A (BV12) [060] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP530E-A (BV12) [060] - GENERATOR
Change View:
1
Required: 1
STATOR ASSY
Price unavailable
2
Required: 1
ROTOR ASSY
Price unavailable
Screw (M8 X 40)
3
Yamaha Motors
Screw (M8 X 40)90149-06122-00
Required: 3
SCREW
Supersedes: 90149-06093-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)90149-06081-00
Required: 2
SCREW
Supersedes: 90149-06082-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
