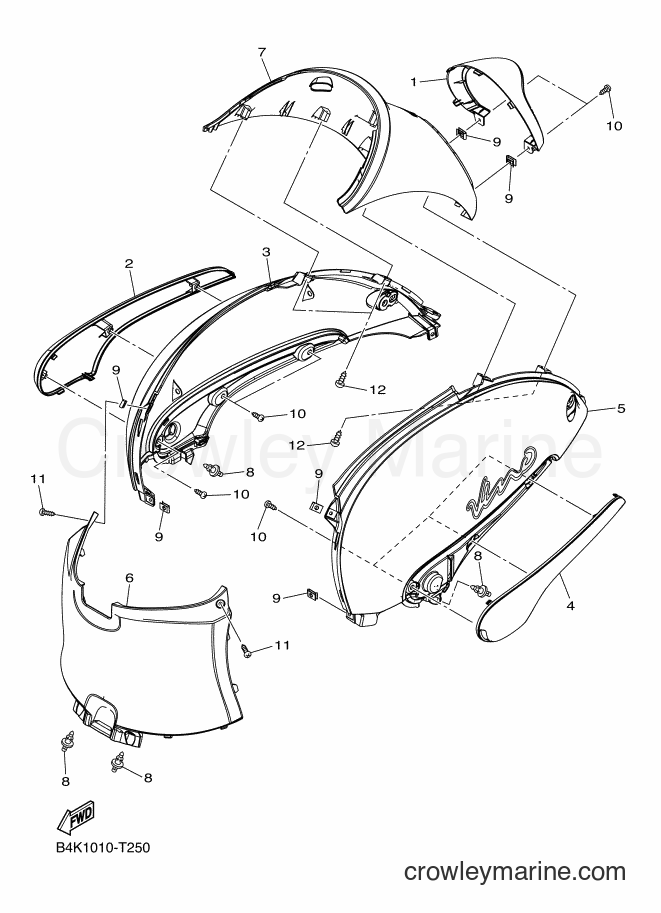

2018 Scooter XCH50 - XCH50 (B4K2) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XCH50 (B4K2) [010] - SIDE COVER
Change View:
1
Required: 1
RIM, TAILLIGHT
Price unavailable
2
Required: 1
COVER, SIDE 6
Price unavailable
3
Required: 1
COVER, SIDE 2
Price unavailable
4
Required: 1
COVER, SIDE 5
Price unavailable
5
Required: 1
COVER, SIDE 1
Price unavailable
6
Required: 1
COVER
Price unavailable
7
Required: 1
COVER, REAR
Price unavailable
8
Required: 4
CLIP, 3
Price unavailable
9
Required: 6
NUT, SPRING
Price unavailable
10
Required: 8
SCREW, TAPPING
Price unavailable
11
Required: 2
SCREW, TAPPING
Price unavailable
12
Required: 4
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
