2018 Scooter XCH50 - XCH50 (B4K2) [010] MIRROR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

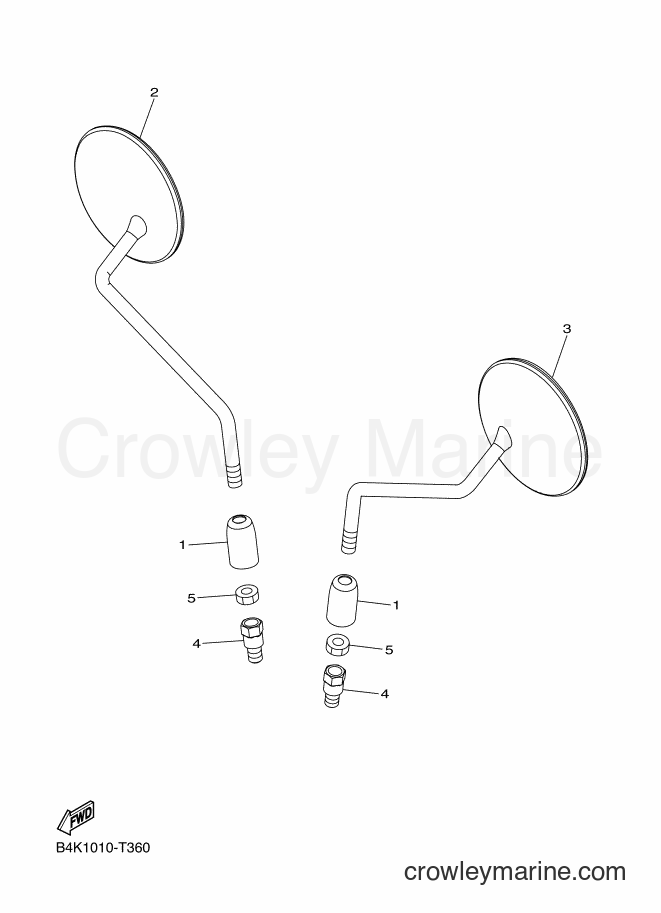

Yamaha Motors XCH50 (B4K2) [010] - MIRROR
Change View:
1
Required: 2
BOOT 1
Price unavailable
2
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
3
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
4
Required: 2
BOLT, ADJUSTING
Price unavailable
5
Required: 2
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
