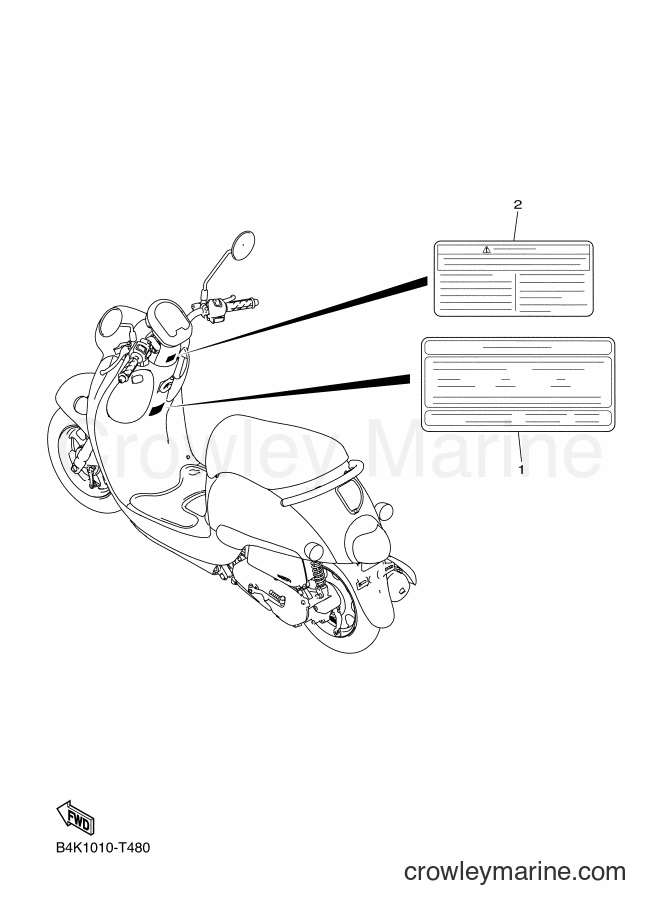

Yamaha Motors XCH50 (B4K2) [010] - LABEL
Change View:
1
Required: 1
LABEL, TIRE
Price unavailable
2
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
