All diagrams for this model

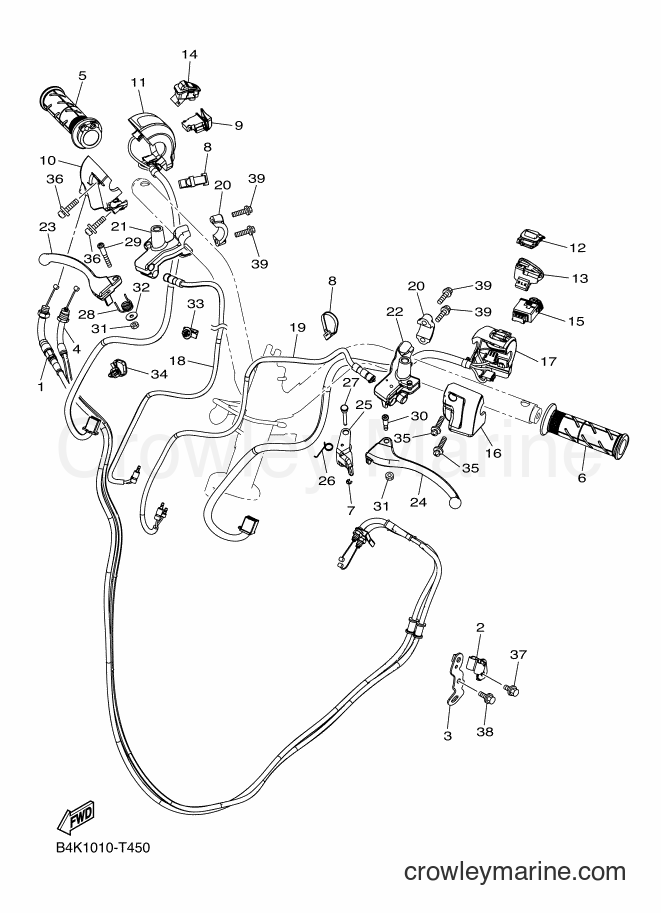

2018 Scooter XCH50 - XCH50 (B4K1) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XCH50 (B4K1) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
CABLE, THROTTLE 1
Price unavailable
2
Required: 1
CLAMP, WIRE
Price unavailable
3
Required: 1
GUIDE, CABLE
Price unavailable
4
Required: 1
CABLE, THROTTLE 2
Price unavailable
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
GRIP
Price unavailable
7
Required: 1
CIRCLIP, 1
Price unavailable
8
Required: 2
CLAMP, CORD
Price unavailable
9
Required: 1
STARTER SWITCH COMP.
Price unavailable
10
Required: 1
CASE, SWITCH LOWER
Price unavailable
11
Required: 1
CASE, SWITCH UPPER
Price unavailable
12
Required: 1
DIMMER SWITCH COMP.
Price unavailable
13
Required: 1
SWITCH
Price unavailable
14
Required: 1
IDELE STOP SW.COMP
Price unavailable
15
Required: 1
FLASHER SW. COMP.
Price unavailable
16
Required: 1
CASE, SWITCH LOWER
Price unavailable
17
Required: 1
CASE, SWITCH UPPER
Price unavailable
18
Required: 1
STOP SWITCH ASSY
Price unavailable
19
Required: 1
ENGINE STOP SWITCH ASSY
Price unavailable
20
Required: 2
BRACKET, MASTER CYLINDER
Price unavailable
21
Required: 1
LEVER HOLDER ASSY 2
Price unavailable
22
Required: 1
LEVER HOLDER ASSY 1
Price unavailable
23
Required: 1
LEVER 2
Price unavailable
24
Required: 1
LEVER 1
Price unavailable
25
Required: 1
BRAKE KEVER KIT
Price unavailable
26
Required: 1
SPRING, LEVER
Price unavailable
27
Required: 1
PIN, LEVER PIVOT
Price unavailable
28
Required: 1
SPRING, LEVER
Price unavailable
29
Required: 1
SCREW, LEVER FITTING
Price unavailable
30
Required: 1
SCREW, LEVER FITTING
Price unavailable
31
Required: 2
NUT, HEXAGON
Price unavailable
32
Required: 1
WASHER, PLAIN
Price unavailable
33
Required: 1
CLAMP, CORD 2
Price unavailable
34
Required: 1
CLAMP, CORD 2
Price unavailable
35
Required: 2
SCREW
Price unavailable
36
Required: 2
SCREW
Price unavailable
37
Required: 1
BOLT, FLANGE
Price unavailable
38
Required: 1
BOLT,FLG. M6X14
Price unavailable
39
Required: 4
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
