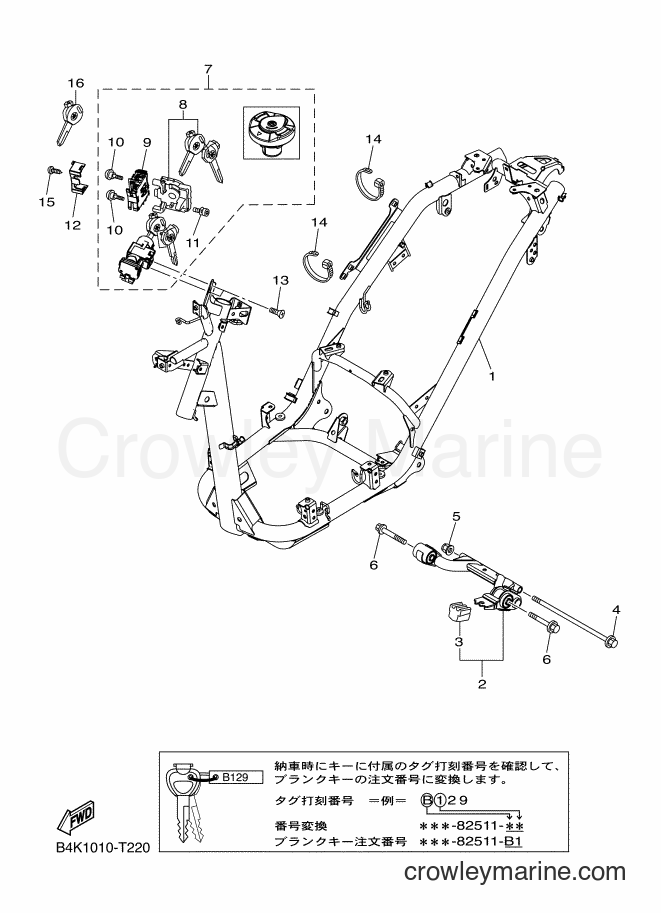

2018 Scooter XCH50 - XCH50 (B4K1) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XCH50 (B4K1) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Required: 1
. DAMPER
Price unavailable
4
Required: 1
BOLT, ENGINE MOUNTING 1
Price unavailable
5
Required: 1
NUT, SELF-LOCKING
Price unavailable
6
Required: 2
BOLT, FLANGE
Price unavailable
7
Required: 1
MAIN SWITCH COMP.
Price unavailable
8
Required: 1
. SHUTTER 2
Price unavailable
9
Required: 1
. CASE,SEAT OPENER
Price unavailable
10
Required: 2
. SCREW
Price unavailable
11
Required: 1
. BOLT
Price unavailable
12
Required: 1
COVER, WIRE
Price unavailable
13
Required: 2
SCREW, SPECIAL
Price unavailable
14
Required: 2
CLAMP, HARNESS
Price unavailable
15
Required: 1
SCREW, TAPPING
Price unavailable
16
Required: 1
BLANK KEY
Price unavailable
